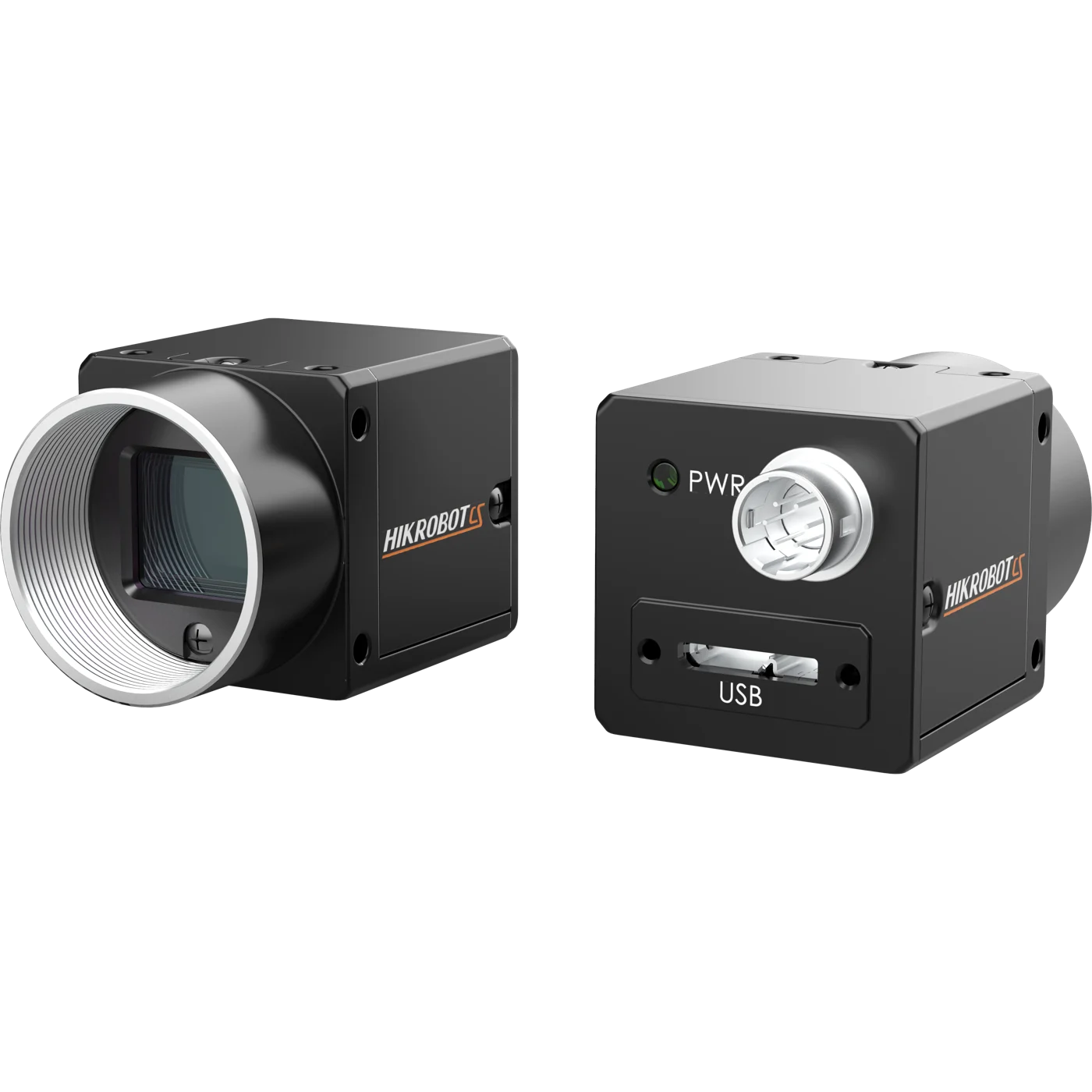

Hikrobot MV-CS016-10UC V5 1.6MP Area Scan Camera, USB3.0, V5, Color
Model MV-CS016-10UC V5
Hikrobot MV-CS016-10UC V5 1.6MP Area Scan Camera, USB3.0, V5, Color. Adopts brand new design to reduce power consumption. Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
Datasheet (PDF) - MV-CS016-10UC V5User manual (PDF) - MV-CS016-10UC V5CAD: 3D STEP + 2D DXF (ZIP) - MV-CS016-10UC V5
Features
- Adopts brand new design to reduce power consumption.
- Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
- Supports hardware trigger, software trigger, and free run.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3.0 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CS016-10UC V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX273 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/2.9" |
| Resolution | 1440 × 1080 |
| Max. frame rate | 249.1 fps @ 1440 × 1080 Bayer RG 8 |
| Dynamic range | 70.8 dB |
| SNR | 39.8 dB |
| Gain | 0 dB to 17 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.7 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3.0 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| EMVA quantum efficiency | 55.68 % |
| EMVA dark noise | 2.1 e- @ 12 bit |
| EMVA saturation capacity | 9.5 ke- |
| Shipping weight (estimated) | 0.21 kg |
