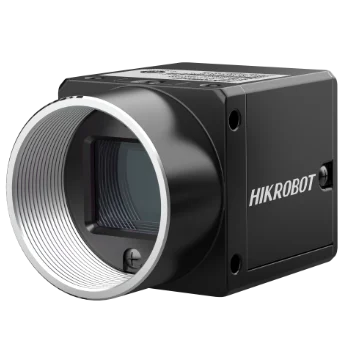

Hikrobot MVAC-PY-FV373-D3XF CMOS USB3.0 Area Scan Camera
Model MVAC-PY-FV373-D3XF
Hikrobot MVAC-PY-FV373-D3XF CMOS USB3.0 Area Scan Camera. Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range and high quality images. Resolution of 2048 × 2048, pixel size of 5.5 μm × 5.5 μm.
Features
- Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range and high quality images.
- Resolution of 2048 × 2048, pixel size of 5.5 μm × 5.5 μm.
- Supports hardware trigger, software trigger, and free run.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MVAC-PY-FV373-D3XF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Pixel size | 5.5 μm × 5.5 μm |
| Sensor size | 1" |
| Resolution | 4 Megapixel |
| Max. frame rate | 90.1 fps @ 2048 × 2048 Bayer GB 8 |
| Dynamic range | 59.7 dB |
| SNR | 39.6 dB |
| Gain | 0 dB to 12 dB |
| Exposure time | 30 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, <br/>Bayer GB 8/10/10Packed/12/12Packed, <br/>YUV422Packed, <br/>YUV422_YUYV_Packed, RGB 8, BGR |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Power consumption | Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 88 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F)<br/>Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating system | 32/64-bit Windows XP/7/10, 64-bit Windows 11, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.22 kg |
