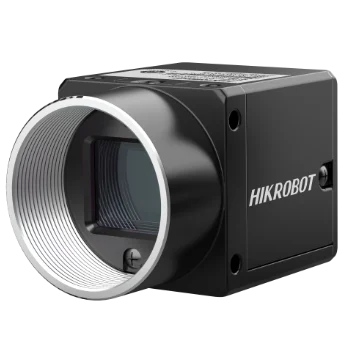

Hikrobot MV-CS200-10UM V5 20MP Area Scan Camera, USB3.0, IMX183, Mono
Model MV-CS200-10UM V5
Hikrobot MV-CS200-10UM V5 20MP Area Scan Camera, USB3.0, IMX183, Mono. Supports auto or manual adjustment of gain, exposure time, white balance, Gamma, and LUT correction, etc. Supports customer ROI, horizontal mirroring, and vertical mirroring.
Datasheet (PDF) - MV-CS200-10UM V5User manual (PDF) - MV-CS200-10UM V5CAD: 3D STEP + 2D DXF (ZIP) - MV-CS200-10UM V5
Features
- Supports auto or manual adjustment of gain, exposure time, white balance, Gamma, and LUT correction, etc.
- Supports customer ROI, horizontal mirroring, and vertical mirroring.
- Supports software trigger, hardware trigger (differential encoder), and free run mode.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
Specifications
| Model | MV-CS200-10UM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1" |
| Resolution | 5472 × 3648 |
| Exposure time | 14 μs to 0.86 sec |
| Gain | 0 dB to 24 dB |
| Mono/color | Mono |
| Max. frame rate | 19.2 fps @ 5472 × 3648 Mono 8 |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Sensor model | Sony® IMX183 |
| Dynamic range | 65.5 dB |
| SNR | 41.5 dB |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling Shutter and Global Reset |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power consumption | Typ. 1.6 W @ 5 VDC (USB3.0 provides power supply) |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Lens mount | C-mount |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
