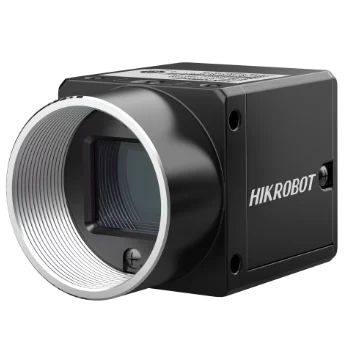

Hikrobot MV-CS050-10UC V5 5MP Area Scan Camera, USB3.0, V5, color
Model MV-CS050-10UC V5
Hikrobot MV-CS050-10UC V5 5MP Area Scan Camera, USB3.0, V5, color. Adopts brand new design to reduce power consumption. Supports Sequencer and Super Palette.
Features
- Adopts brand new design to reduce power consumption.
- Supports Sequencer and Super Palette.
- Supports auto or manual adjustment of gain, exposure time, white balance, LUT, Gamma correction, etc.
- Supports hardware trigger, software trigger, and anyway mode.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CS050-10UC V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX264 |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 2/3" |
| Resolution | 2448 × 2048 |
| Max. frame rate | 74 fps @ 2448 × 2048 Bayer RG 8 |
| Dynamic range | 71.4 dB |
| SNR | 39.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.8 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, KC, RoHS |
| Shipping weight (estimated) | 0.21 kg |
