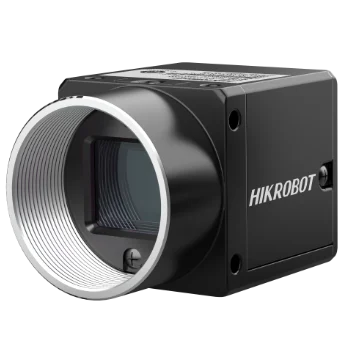

Hikrobot MV-CS020-10UC 2MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Color
Model MV-CS020-10UC
Hikrobot MV-CS020-10UC 2MP Area Scan Camera, USB3.0, IMX430, 2nd Generation, Color. Adopts brand new design to reduce power consumption. Supports sequencer, passive transmission, etc.
Datasheet (PDF) - MV-CS020-10UCUser manual (PDF) - MV-CS020-10UCCAD: 3D STEP + 2D DXF (ZIP) - MV-CS020-10UC
Features
- Adopts brand new design to reduce power consumption.
- Supports sequencer, passive transmission, etc.
- Color camera supports white balance, CCM, Super Palette, Super Bayer, etc.
- Supports hard trigger, software trigger, free run, etc.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CS020-10UC |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX430 |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 1/1.7" |
| Resolution | 1624 × 1240 |
| Max. frame rate | 90 fps @ 1624 × 1240 Bayer RG 8 |
| Dynamic range | 71.5 dB |
| SNR | 43.7 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 5 μs; Standard exposure mode: 6 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Mono 8/10/12, ; Bayer RG 8/10/10Packed/12/12Packed, ; YUV422Packed, YUV422_YUYV_Packed, ; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB 3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
