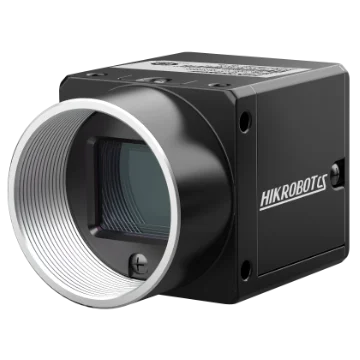

Hikrobot MV-CS120-60UM V5 12MP Area Scan Camera, USB3.0, V5, Mono
Model MV-CS120-60UM V5
Hikrobot MV-CS120-60UM V5 12MP Area Scan Camera, USB3.0, V5, Mono. Adopts brand new design to reduce power consumption. Supports auto or manual adjustment for gain, exposure time, white balance, LUT, and Gamma correction.
Features
- Adopts brand new design to reduce power consumption.
- Supports auto or manual adjustment for gain, exposure time, white balance, LUT, and Gamma correction.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CS120-60UM V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Stacked BSI |
| Pixel size | 2.0 μm × 2.0 μm |
| Sensor size | 1/1.56" |
| Resolution | 4096 × 3024 |
| Max. frame rate | 26.8 fps @ 4096 × 3024 Mono 8 |
| SNR | 68.5 dB |
| Dynamic range | 38.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 22 μs to 1.4 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB power supply |
| Power consumption | Typ. 1.5 W @ 5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.2 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.21 kg |
