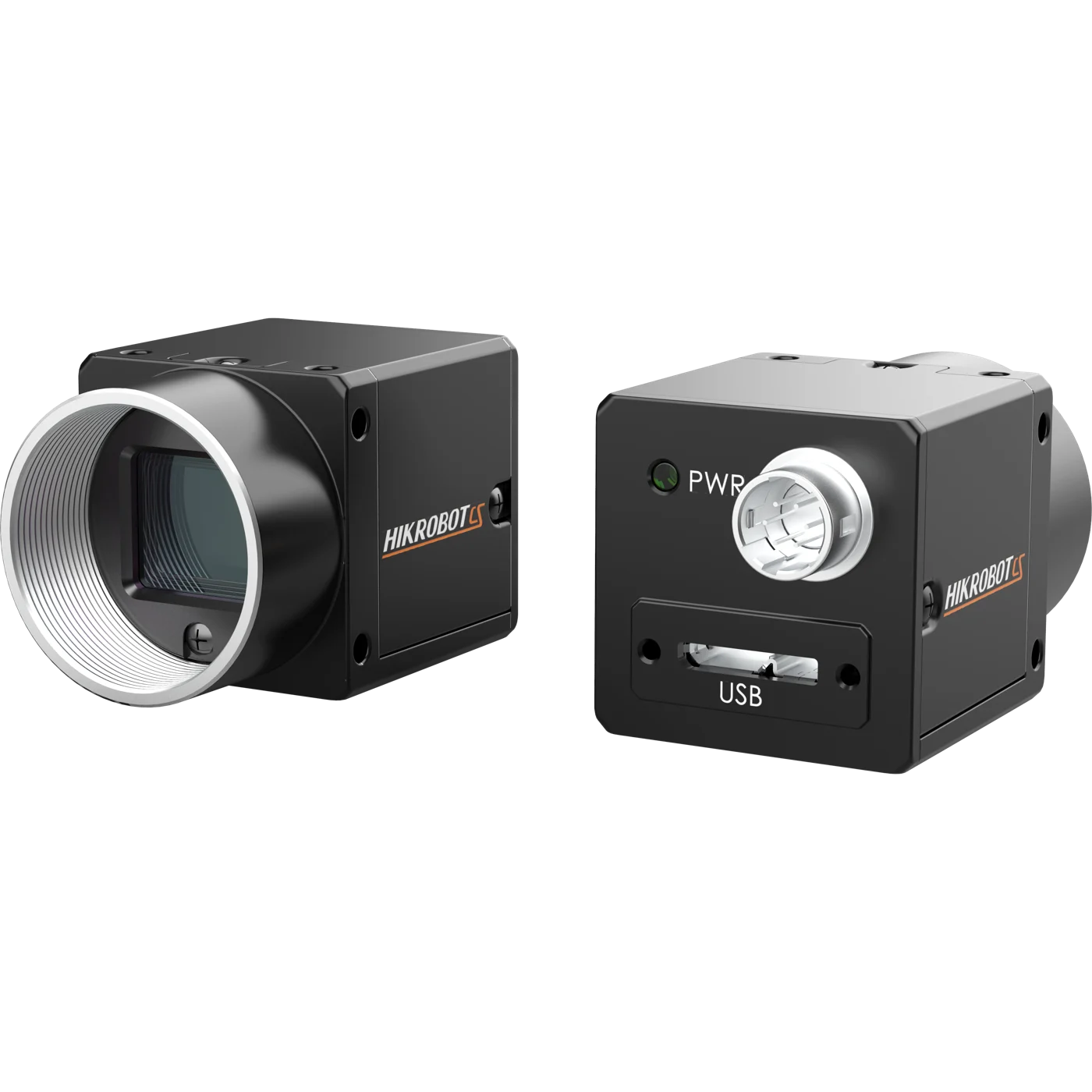

Hikrobot MV-CS004-10UM 0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., Mono
Model MV-CS004-10UM
Hikrobot MV-CS004-10UM 0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., Mono. Adopts brand new design to reduce power consumption. Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
Datasheet (PDF) - MV-CS004-10UMUser manual (PDF) - MV-CS004-10UMCAD: 3D STEP + 2D DXF (ZIP) - MV-CS004-10UM
Features
- Adopts brand new design to reduce power consumption.
- Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CS004-10UM |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX287 |
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 1/2.9" |
| Resolution | 720 × 540 |
| Dynamic range | 73.6 dB |
| Max. frame rate | 526.5 fps @720 × 540 Mono 8 |
| SNR | 42.9 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono | Mono |
| Pixel format | Mono 8/10/10Packed/12/12Packed |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 2.4 W@5 VDC ; (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| EMVA quantum efficiency | 58.3 % |
| EMVA dark noise | 3.3 e- @ 12 bit |
| EMVA signal-to-noise ratio | 42.9 dB |
| EMVA saturation capacity | 19.6 ke- |
| Shipping weight (estimated) | 0.21 kg |
