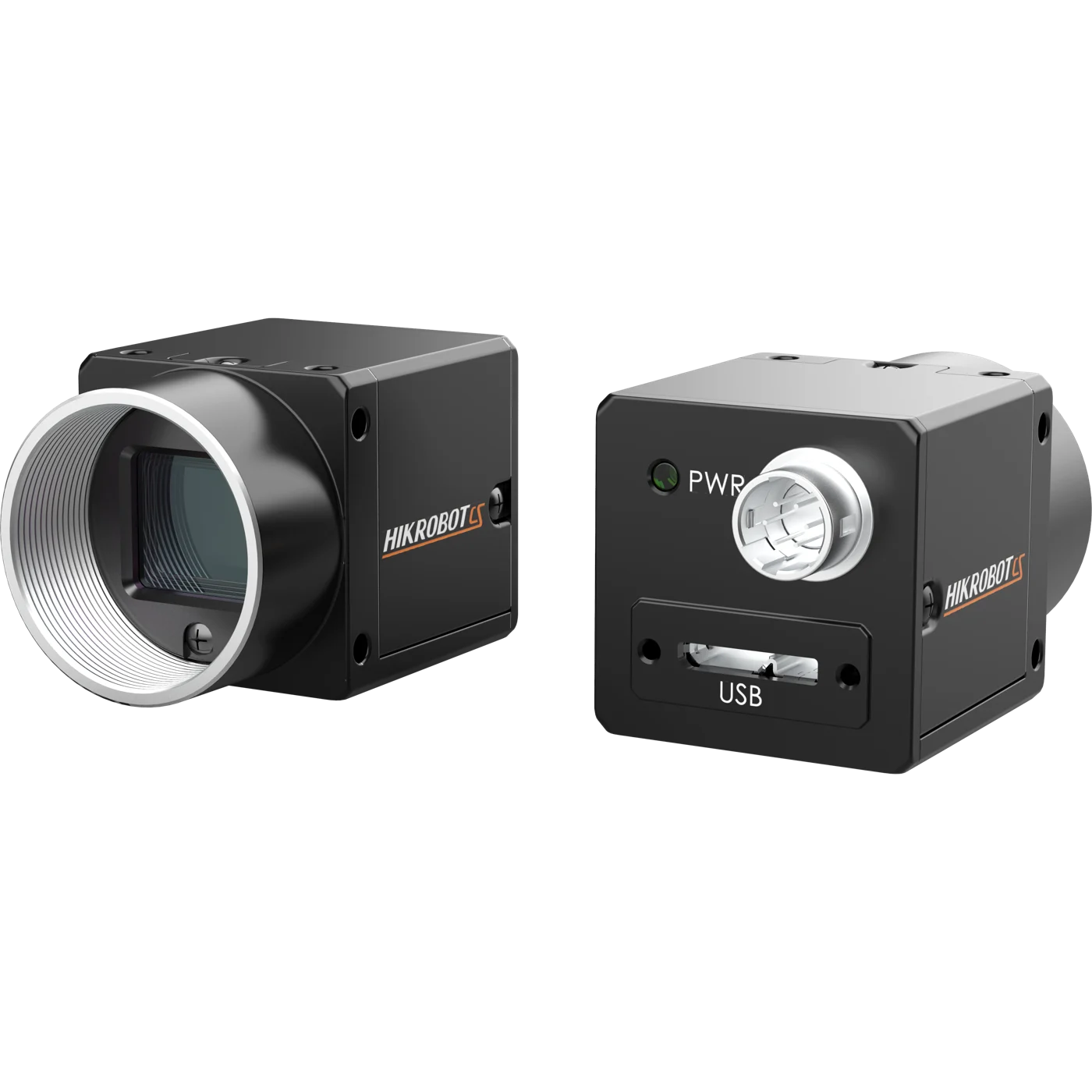

Hikrobot MV-CS004-10UC V5 0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., V5, Color
Model MV-CS004-10UC V5
Hikrobot MV-CS004-10UC V5 0.4MP Area Scan Camera, USB3.0, IMX287, 2nd Gen., V5, Color. Adopts brand new design to reduce power consumption. Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
Datasheet (PDF) - MV-CS004-10UC V5User manual (PDF) - MV-CS004-10UC V5CAD: 3D STEP + 2D DXF (ZIP) - MV-CS004-10UC V5
Features
- Adopts brand new design to reduce power consumption.
- Supports sequencer, contrast ratio, white balance, Gamma correction, etc.
- Supports hardware trigger, software trigger, free run, etc.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Compatible with USB3.0 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CS004-10UC V5 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Sony® IMX287 |
| Pixel size | 6.9 μm × 6.9 μm |
| Sensor size | 1/2.9" |
| Resolution | 720 × 540 |
| Max. frame rate | 530 fps @ 720 × 540 Bayer RG 8 |
| Dynamic range | 68.0 dB |
| SNR | 39.7 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | UltraShort exposure mode: 1 μs to 14 μs; Standard exposure mode: 15 μs to 10 sec |
| Mono/color | Color |
| Exposure mode | Off/Once/Continuous exposure mode |
| Pixel format | Mono 8; Bayer RG 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 1.7 W @ 5 VDC ; (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit win11, 32/64-bit Linux |
| Compatibility | USB3.0 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| EMVA quantum efficiency | 55.09 % |
| EMVA dark noise | 3.1 e- @ 12 bit |
| EMVA saturation capacity | 9.4 ke- |
| Shipping weight (estimated) | 0.21 kg |
