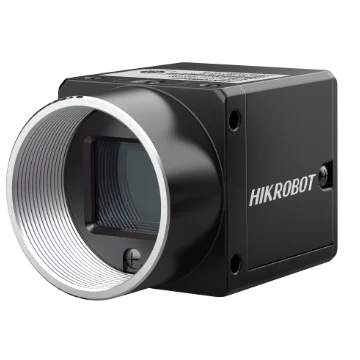

Hikrobot MV-CS060-10UM-PRO 6MP Area Scan Camera, USB3.0, IMX178, Mono, PRO
Model MV-CS060-10UM-PRO
Hikrobot MV-CS060-10UM-PRO 6MP Area Scan Camera, USB3.0, IMX178, Mono, PRO. Adopts brand new design to reduce power consumption. Compact design with mounting holes on panels for flexible mounting from 4 sides.
Datasheet (PDF) - MV-CS060-10UM-PROUser manual (PDF) - MV-CS060-10UM-PROCAD: 3D STEP + 2D DXF (ZIP) - MV-CS060-10UM-PRO
Features
- Adopts brand new design to reduce power consumption.
- Compact design with mounting holes on panels for flexible mounting from 4 sides.
- Adopts Sony® IMX178 sensor to provide high sensitivity, wide dynamic range, and low noise.
- Supports image compression mode and noise reduction function.
- Adopts active alignment techniques for assembling.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.
Specifications
| Model | MV-CS060-10UM-PRO |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX178 |
| Pixel size | 2.4 μm × 2.4 μm |
| Sensor size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max. frame rate | 59.6fps @ 3072 × 2048 |
| SNR | 41.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure time | 32 us to 1 sec |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling |
| Mono | Mono |
| Pixel format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, ; YUV422Packed, YUV422_YUYV_Packed, RGB; 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | USB3.0, compatible with USB2.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Power consumption | Typ. 2.3 W@5 VDC (USB3.0 provides power supply) |
| Lens mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| EMVA quantum efficiency | 71.7% |
| EMVA dark noise | 6.2e-@10-bit |
| EMVA signal-to-noise ratio | 41.4 dB |
| EMVA saturation capacity | 13.6 ke- |
| EMVA dynamic range | 66.2 dB |
| Shipping weight (estimated) | 0.21 kg |
