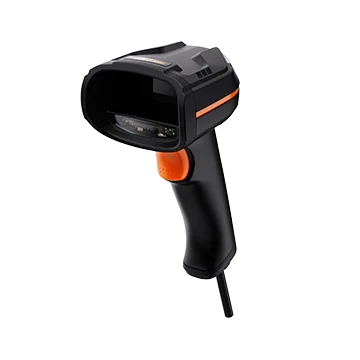

Hikrobot MV-LZH3000/13NR/05RN/L General-purpose industrial wired handheld code reader
Model MV-LZH3000/13NR/05RN/L
Hikrobot MV-LZH3000/13NR/05RN/L General-purpose industrial wired handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles difficult codes that are dirty, damaged or low-contrast
Features
- In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
- Robust algorithm handles difficult codes that are dirty, damaged or low-contrast
- Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
- Supports TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, SmartSDK, MC/SLMP, FINS and other protocols
- Detachable cable design for easy replacement
Specifications
| Model | MV-LZH3000/13NR/05RN/L |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, GS1- Code128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; Matrix 2D code: QR Code, Data Matrix, MicroQR, Aztec, Han Xin, GS1-DM, GS1-QR; Stacked 2D code: PDF417 |
| Min. accuracy | 4mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 39 (5 mil): 40 mm to 160 mm; Code 128 (10 mil): 10 mm to 400 mm; Data Matrix (10 mil): 30 mm to 200 mm; QR Code (15 mil): 15 mm to 280 mm; QR Code (20 mil): 20 mm to 370 mm |
| Field of view | 40° (H) × 34° (V) |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, TCP Client, TCP Server, FTP, UDP, Serial (RS-232) |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Power supply | 12 VDC ~ 24 VDC |
| Current consumption | 0.5 A (max.), 0.28 A (typical) |
| Focal length | 4.7 mm |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Red LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP52 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Drop height | Drop: 1.8 m, 50 times; Tumble: 0.5 m, 1200 times |
| Static electricity resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
