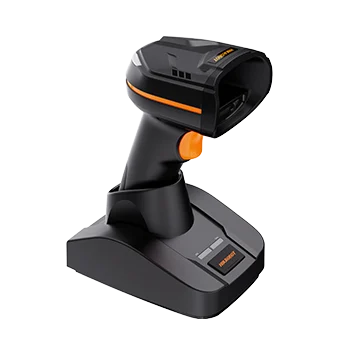

Hikrobot CY-WXB13-05N-R1L 1.3 MP wireless industrial handheld code reader
Model CY-WXB13-05N-R1L
Hikrobot CY-WXB13-05N-R1L 1.3 MP wireless industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles dirty, damaged and low-contrast codes
Features
- In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
- Robust algorithm handles dirty, damaged and low-contrast codes
- Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
- Bluetooth 5.0 wireless: cable-free for more efficient, lightweight operation
- With the smart base, connects to IDMVS for parameter configuration and device management
Specifications
| Model | CY-WXB13-05N-R1L |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc. |
| Min. accuracy | 3 mil |
| Max. frame rate | 50 fps |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.7 µm × 2.7 µm |
| Sensor size | 1/4” |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128 (3 mil): 25 ~ 70 mm C; Code 128 (10 mil): 10 ~ 170 mm; Code 39 (5 mil): 15 ~ 100 mm; Data Matrix (5 mil): 30 ~ 60 mm; Data Matrix (10 mil): 5 ~ 115 mm |
| Field of view | Horizontal 40°, Vertical 34° |
| Detection angle | Tilt angle ±60°, Skew angle ±60°, Rotation angle 360° |
| Symbol contrast | 20 % |
| Bluetooth | BT 5.0, 2.4 to 2.4835 GHz band, BLE |
| Wireless range | 70 m (open range) |
| Communication protocol | Code reader: Bluetooth; Base: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Bluetooth |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Battery | 3150mAh, Rechargeable lithium battery |
| Charging time | 4 h |
| Scan rate | 29000 scans (full charge) |
| Power supply | Reader: 3.8 VDC (battery powered); Base: 12 ~ 24 VDC |
| Max. power consumption | Code reader: standby mode: 0.8 W @ 3.8 VDC; Operating mode: 1.6 W @ 3.8 VDC; Sleep mode: 0.6 [email protected] VDC; Base: 6.6 W@ 12 VDC |
| Focal length | 4.7 mm |
| Lens mount | M5.8-Mount |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Red LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, Buzzer, Vibrator |
| Dimension | Code reader: 74.4 mm × 86.6 mm × 179.5 mm; Base: 100.9 mm × 131.8 mm × 83.6 mm |
| Weight | Reader: approx. 230 g; Base: approx. 180 g |
| Ingress protection | IP42 |
| Temperature | Operating temperature: -20 to 50 ℃, Storage temperature: -30 to 60 ℃, Battery charging temperature 0 ~ 45℃ |
| Humidity | 20% RH to 80% RH (no condensation) |
| Drop height | 1.5 m, 50+ drops |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.42 kg |
