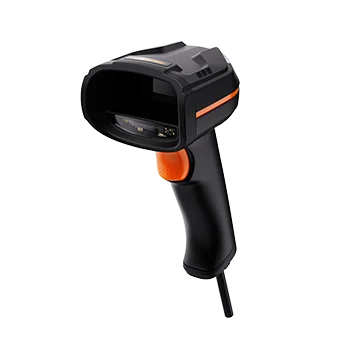

Hikrobot MV-IDH3000/13NR/04RN/U Industrial wired handheld code reader
Model MV-IDH3000/13NR/04RN/U
Hikrobot MV-IDH3000/13NR/04RN/U Industrial wired handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles difficult codes that are dirty, damaged or low-contrast
Datasheet (PDF, Chinese) - MV-IDH3000/13NR/04RN/UUser manual (PDF, Chinese) - MV-IDH3000/13NR/04RN/UCAD: 3D STEP + 2D DXF (ZIP) - MV-IDH3000/13NR/04RN/U
Features
- In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
- Robust algorithm handles difficult codes that are dirty, damaged or low-contrast
- Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
- Supports TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, SmartSDK, MC/SLMP, FINS and other protocols
- Detachable cable design for easy replacement
Specifications
| Model | MV-IDH3000/13NR/04RN/U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin; Stacked code: PDF417 |
| Min. accuracy | 3 mil (1D code) |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 39(3 mil):0 mm ~ 70 mm1; Code 128(10 mil):0 mm ~ 150 mm1; Code 39(5 mil):0 mm ~ 85 mm1; Data Matrix(5 mil):10 mm ~ 50 mm1; Data Matrix(10 mil):0 mm ~ 100 mm1 |
| Field of view | 44° (H) × 36° (V) |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, USB(HID/CDC), Serial (RS-232) |
| Data interface | USB 2.0, RS-232, DC terminal |
| Power supply | USB 2.0: 5 VDC; DC terminal: 12 VDC to 24 VDC |
| Current consumption | USB 2.0: 0.9 A (max.), 0.5 A (typical); DC terminal: 0.5 A (max.), 0.28 A (typical) |
| Focal length | 4.3 mm |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Red LED |
| Aiming system | Line laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP52 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Drop height | Dropping: 1.8 m, 50 times; Rolling: 0.5 m, 1200 times |
| Static electricity resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
