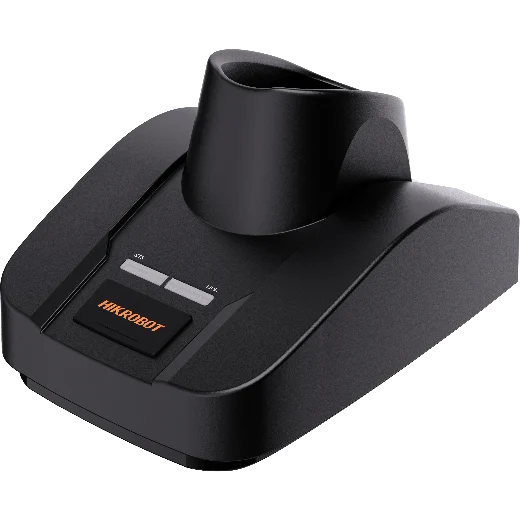

Hikrobot MV-IDH3000B/SBASE/L LAN Smart Base
Model MV-IDH3000B/SBASE/L
Hikrobot MV-IDH3000B/SBASE/L LAN Smart Base. Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations. Provides USB, network, or RS-232 interfaces to meet different demands.
Datasheet (PDF) - MV-IDH3000B/SBASE/LUser manual (PDF) - MV-IDH3000B/SBASE/LQuick start guide (PDF) - MV-IDH3000B/SBASE/L
Features
- Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
- Provides USB, network, or RS-232 interfaces to meet different demands.
- Parameter configuration and device management via IDMVS client software are supported.
- Supports TCP, FTP, UDP, and Serial communication protocols.
Specifications
| Model | MV-IDH3000B/SBASE/L |
|---|---|
| Brand | Hikrobot |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open area) |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232), Bluetooth |
| Data interface | Fast Ethernet (100 Mbit/s), RS-232, DC terminal |
| Power supply | 12 VDC to 24 VDC |
| Current consumption | 0.7 A (max.), 0.06 A (during standby) |
| Charging time | 4 h |
| Dimension | 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3") |
| Weight | Approx. 180 g (0.4 lb.) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Ingress protection | IP40 |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.35 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the IDH3000 Series Handheld Code Reader series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDH3000/13SR/05RN/U | 1.3 MP | $359.00 | 5 in stock | View |
| MV-IDH3000/13SR/05RN/L | 1.3 MP | $379.00 | 2 in stock | View |
| MV-IDH3000/13SR/05RN/LE | 1.3 MP | $419.00 | 5 in stock | View |
| MV-IDH3000/13NR/05RN/L | 1.3 MP | $419.00 | 5 in stock | View |
| MV-IDH3000/13NR/05RN/LE | 1.3 MP | $419.00 | 2 in stock | View |
| MV-IDH3000B/13SR/05RN/LES | 1.3 MP | $419.00 | 3 in stock | View |
| MV-IDH3000B/13NR/05RN/LS | 1.3 MP | $419.00 | 5 in stock | View |
| MV-IDH3000B/13NR/05RN/LES | 1.3 MP | $419.00 | 4 in stock | View |
| MV-IDH3000B/13SR/05RN | 1.3 MP | $459.00 | 2 in stock | View |
| MV-IDH3000B/13NR/05RN | 1.3 MP | $459.00 | 4 in stock | View |
| MV-IDH3000/13NR/05RN/U | 1.3 MP | $489.00 | 5 in stock | View |
| MV-IDH3000B/13SR/05RN/US | 1.3 MP | $489.00 | 3 in stock | View |
| MV-IDH3000B/13NR/05RN/US | 1.3 MP | $489.00 | 3 in stock | View |
| MV-IDH3000B/SBASE/U | $489.00 | 4 in stock | View | |
| MV-IDH3000B/13SR/05RN/LS | 1.3 MP | $549.00 | 5 in stock | View |
