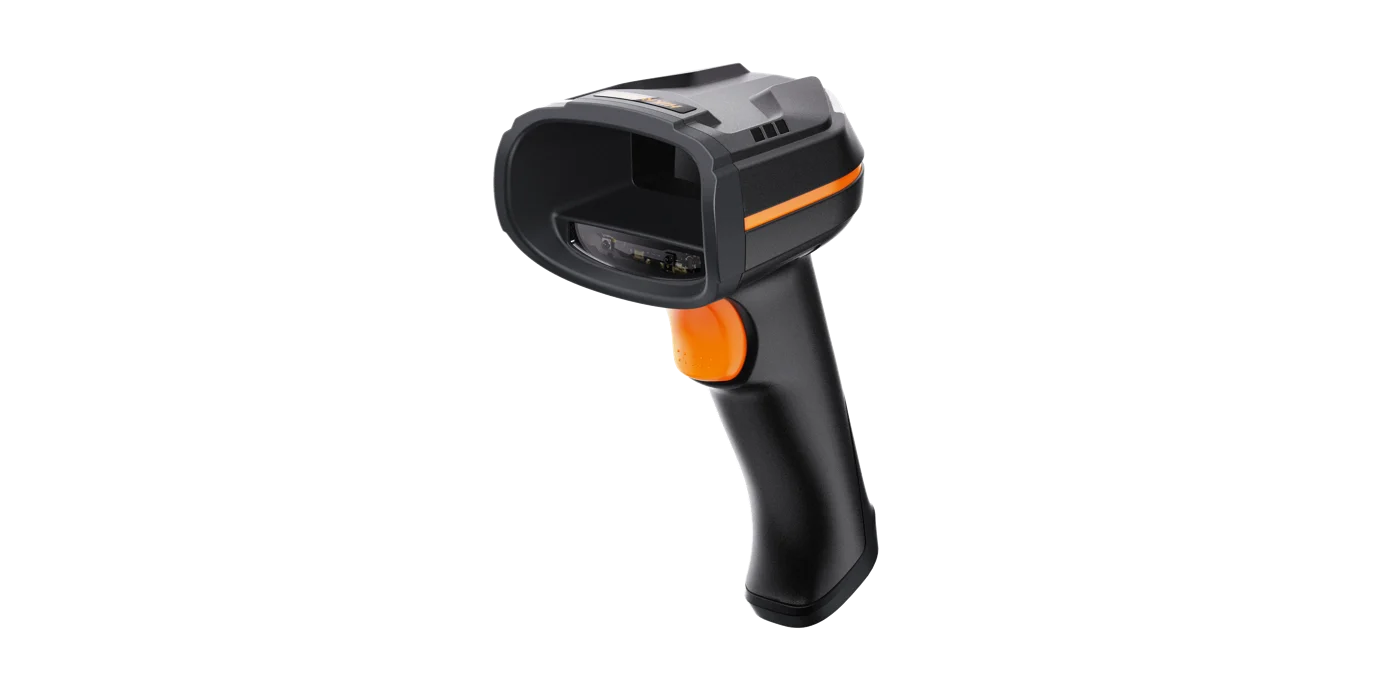

Hikrobot MV-IDH3000B/13NR/05RN Wireless Handheld Code Reader (No IBASE)
Model MV-IDH3000B/13NR/05RN
Hikrobot MV-IDH3000B/13NR/05RN Wireless Handheld Code Reader. Built-in code reading algorithm for decoding different types of 1D and 2D codes. Provides good robustness to read codes with spots, defects and low contrast ratio.
Datasheet (PDF) - MV-IDH3000B/13NR/05RNUser manual (PDF) - MV-IDH3000B/13NR/05RNQuick start guide (PDF) - MV-IDH3000B/13NR/05RN
Features
- Built-in code reading algorithm for decoding different types of 1D and 2D codes.
- Provides good robustness to read codes with spots, defects and low contrast ratio.
- Supports continuous code reading, batch code reading for improving code reading efficiency.
- Adopts Bluetooth 5.0 wireless technology to provide convenient and efficient operations.
- With smart bases, parameter configuration and device management via IDMVS client software are supported.
Specifications
| Model | MV-IDH3000B/13NR/05RN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE; 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin; Stacked code: PDF417 |
| Min. accuracy | 3 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128 (3 mil): 25 mm to 70 mm; Code 128 (10 mil): 10 mm to 170 mm; Code 39 (5 mil): 15 mm to 100 mm; Data Matrix (5 mil): 30 mm to 60 mm; Data Matrix (10 mil): 5 mm to 115 mm |
| Field of view | Horizontal 40°, vertical 34° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20% |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open range) |
| Battery | 3150 mAh |
| Charging time | Network-interface device: Shutdown mode: 12 VDC (12 V, 2 A): 3.5 h; USB-interface device: Shutdown mode: USB 2.0 (5 V, 500 mA): 8.5 h, USB 3.0 (5 V, 1 A): 8.5 h, 12 VDC (12 V, 2 A): 3.5 h |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Focal length | 4.7 mm |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | Red LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1") |
| Weight | Approx. 230 g (0.5 lb.) |
| Ingress protection | IP52 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Drop height | Dropping: 1.8 m, 50 times; Rolling: 0.5 m, 1200 times |
| Static electricity resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Communication protocol | Network-interface device: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232), Bluetooth; USB-interface device: SmartSDK, USB (HID/CDC), Bluetooth, Serial (RS-232) |
| Data interface | Network-interface device: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; USB-interface device: USB 2.0, USB 3.0, RS-232, DC terminal1 |
| Power supply | Network-interface device: 12 VDC to 24 VDC; USB-interface device: USB: 5 VDC, DC terminal: 12 VDC to 24VDC |
| Charging time (smart base) | Network-interface device: 4 h; USB-interface device: USB: 8.5 h |
| Current consumption | Network-interface device: 0.7 A (max.), 0.06 A (during standby); USB-interface device: USB 2.0: 1.5 A (max.), 0.14 A (during standby); DC terminal: 0.7 A (max.), 0.06 A (during standby) |
| Dimension (smart base) | 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3") |
| Weight (smart base) | Approx. 180 g (0.4 lb.) |
| Humidity (smart base) | 20% RH to 80% RH (no condensation) |
| Ingress protection (smart base) | IP40 |
| Temperature (smart base) | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Shipping weight (estimated) | 0.42 kg |
