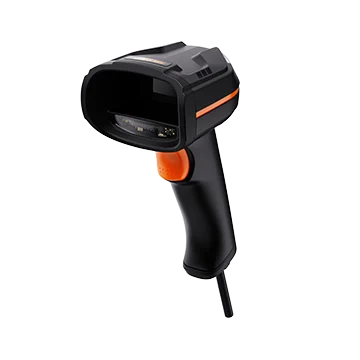

Hikrobot HIK-IDYL3000/13NR/05RN/U General-purpose industrial wired handheld code reader
Model HIK-IDYL3000/13NR/05RN/U
Hikrobot HIK-IDYL3000/13NR/05RN/U General-purpose industrial wired handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles dirty, damaged and low-contrast codes
Features
- In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
- Robust algorithm handles dirty, damaged and low-contrast codes
- Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
- Supports TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, SmartSDK, MC/SLMP, FINS and other protocols
- Detachable cable design for easy replacement
Specifications
| Model | HIK-IDYL3000/13NR/05RN/U |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, GS1- Code128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; 2D code: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR; Stacked code: PDF417 |
| Min. accuracy | 3 mil |
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128(3 mil):25 mm~ 70 mm; Code 128(10 mil):10 mm~ 170 mm; Code 39(5 mil):15 mm~ 100 mm; Data Matrix(5 mil):30 mm ~ 60 mm; Data Matrix(10 mil):5 mm ~ 115 mm |
| Field of view | 40° (H) × 34° (V) |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | SmartSDK, USB (HID/CDC), Serial (RS-232) |
| Data interface | USB2.0, RS-232, DC terminal |
| Power supply | USB 2.0: 5 VDC; DC terminal: 12 VDC to 24 VDC |
| Current consumption | USB 2.0: 0.9 A (max current); 0.5 A (typical current); DC terminal: 0.5 A (max current); 0.28 A (typical current) |
| Focal length | 4.7 mm |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Red LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Drop height | Drop: 1.8 m, 50 times; Tumble: 0.5 m, 1200 times |
| Static electricity resistant | ± 16 kV (air discharge), ± 8 kV (contact discharge) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Pulse width | 8 ms |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
