Handheld code readers

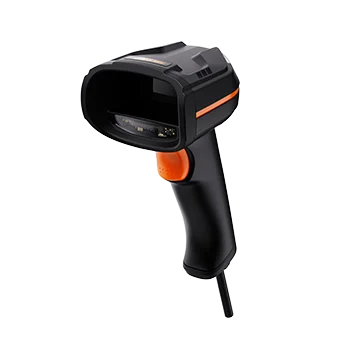

Hikrobot CY-YXB13-05N-R1L(U) B series 1.3 MP industrial handheld code reader
Model CY-YXB13-05N-R1L(U)
Hikrobot CY-YXB13-05N-R1L(U) B series 1.3 MP industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles difficult codes that are dirty, damaged or low-contrast
Features
- In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
- Robust algorithm handles difficult codes that are dirty, damaged or low-contrast
- Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
- Supports TCP, FTP, UDP, USB, Profinet, EthernetIP, Modbus, Serial, SmartSDK, MC/SLMP, FINS and other protocols
- Detachable cable design for easy replacement
Specifications
| Model | CY-YXB13-05N-R1L(U) |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, Matrix 2 of 5, ITF14, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc. |
| Min. accuracy | 3 mil |
| Max. frame rate | 50 fps |
| Sensor type | CMOS, global shutter |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128(3 mil):25 mm~ 70 mm; Code 128(10 mil):10 mm~ 170 mm; Code 39(5 mil):15 mm~ 100 mm; Data Matrix(5 mil):30 mm ~ 60 mm; Data Matrix(10 mil):5 mm ~ 115 mm |
| Field of view | Horizontal 40°, Vertical 34° |
| Detection angle | Tilt angle ±60°, Skew angle ±60°, Rotation angle 360° |
| Symbol contrast | 20 % |
| Communication protocol | GigE: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial; USB port: SmartSDK, USB (HID/CDC) |
| Data interface | Ethernet: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; USB port: USB2.0, DC terminal |
| Power supply | GigE: 12~24 VDC; USB port: 5 VDC (USB); 12 to 24 VDC (DC terminal) |
| Max. power consumption | GigE: 1.8 W@12 VDC; USB port: 1.5 W@5 VDC (USB); 1.8 W@12 VDC (DC terminal) |
| Focal length | 4.7 mm |
| Lens mount | M5.8-Mount |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Red LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | 74.4 mm × 86.6 mm × 190.2 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Ingress protection | IP42 |
| Temperature | Operating temperature: -20 to 50 ℃, Storage temperature: -40 to 70 ℃ |
| Humidity | 20% RH to 80% RH (no condensation) |
| Drop height | 1.5 m, 50+ drops |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.32 kg |
