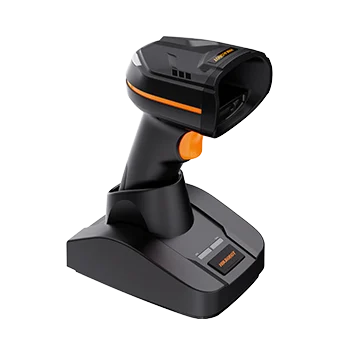

Hikrobot CT-IDH6010B/13NR/05RN/US Wireless USB Handheld Code Reader Package
Model CT-IDH6010B/13NR/05RN/US
Hikrobot CT-IDH6010B/13NR/05RN/US Wireless USB Handheld Code Reader Package. In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications Robust algorithm handles dirty, damaged and low-contrast codes
Features
- In-house high-performance barcode algorithm efficiently reads 1D and 2D codes in industrial applications
- Robust algorithm handles dirty, damaged and low-contrast codes
- Continuous and batch reading modes greatly improve efficiency in multi-code scenarios
- Bluetooth 5.0 wireless: cable-free for more efficient, lightweight operation
- With the smart base, connects to IDMVS for parameter configuration and device management
Specifications
| Model | CT-IDH6010B/13NR/05RN/US |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, GS1- Code128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE; Matrix 2D code: QR Code, Data Matrix, MicroQR, Aztec, Han Xin, GS1-DM, GS1-QR; Stacked 2D code: PDF417 |
| Min. accuracy | 3 mil |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.7 μm × 2.7 μm |
| Sensor size | 1/4” |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128(3 mil):25 mm ~ 70 mm; Code 128(10 mil):10 mm ~ 170 mm; Code 39(5 mil):15 mm ~ 100 mm; Data Matrix(5 mil):30 mm ~ 60 mm; Data Matrix(10 mil):5 mm ~ 115 mm |
| Field of view | Horizontal 40°, Vertical 34° |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol contrast | 20 % |
| Bluetooth | BT 5.0, 2.4 to 2.4835 GHz band, BLE |
| Wireless range | 80 m (open range) |
| Communication protocol | SmartSDK, USB(HID/CDC), Bluetooth, Serial (RS-232) |
| Data interface | USB2.0, DC terminal |
| Battery | 3150mAh, Rechargeable lithium battery |
| Charging time | Powered off: USB 2.0 (5V, 500mA):8.5 h; USB3.0(5V, 1A):8.5 h; DC12 V(12V, 2A):3.5 h |
| Endurance | 13 h (interval scanning, once in 2 seconds) |
| Power supply | Reader: 3.8 VDC (battery); Base: 5 VDC (USB); 12 to 24 VDC (DC terminal) |
| Maximum power | Code reader: standby mode: 0.8 W @ 3.8 VDC; Operating mode: 1.6 W @ 3.8 VDC; Sleep mode: 0.6 W@; 3.8 VDC; Base: 4.5 W@ 5 VDC (USB); 6.6 W@ 12 VDC (DC terminal) |
| Focal length | 4.7 mm |
| Lens mount | M5.8-Mount |
| Ambient illumination | 0 ~ 100000 lux |
| Light source | Red LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer, vibrator |
| Dimension | Reader: 74.4 mm × 86.6 mm × 179.5 mm; Base: 100.9 mm × 131.8 mm × 83.6 mm |
| Weight | Code reader: approx. 230 g; Base: approx. 180 g |
| Ingress protection | IP42 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F); Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Drop height | 1.5 m, 50+ drops |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Beam divergence angle | 14.5° |
| Pulse width | 8 ms |
| Repetition rate | 50 HZ |
| Maximum power (laser) | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Shipping weight (estimated) | 0.42 kg |
