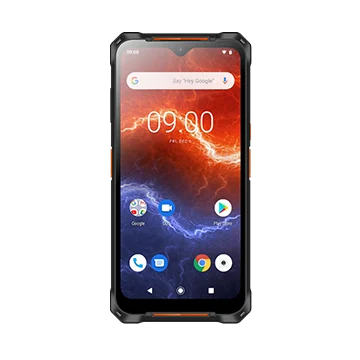

Hikrobot MV-IDP5204/A/4&64 6.2-inch 8-core full-screen PDA

Name: Hikrobot MV-IDP5204/A/4&64 6.2-inch 8-core full-screen PDA
Brand: Hikrobot
SKU: MV-IDP5204/A/4&64

Model MV-IDP5204/A/4&64

Hikrobot MV-IDP5204/A/4&64 6.2-inch 8-core full-screen PDA. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes Octa-core 2.2 GHz processor running Android 11.0

Datasheet (PDF, Chinese) - MV-IDP5204/A/4&64 User manual (PDF, Chinese) - MV-IDP5204/A/4&64

Features

In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
Octa-core 2.2 GHz processor running Android 11.0
6.2-inch display with 1520 × 720 resolution
Rugged industrial design: IP68 protection and repeated 1.5 m drops
5000 mAh high-capacity battery for long runtime, with fast charging
Fast roaming support with powerful Wi-Fi performance

Specifications

Model	MV-IDP5204/A/4&64
Brand	Hikrobot
Symbologies	1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417
Min. accuracy	3 mil
Detection angle	Horizontal 42°, Vertical 28°
Field of view	Tilt angle ±60°, Skew angle ±45°, Rotation angle 360°
Depth of field	Code 39(10 mil):40 mm ~ 340 mm; Code 39(25 mil):70 mm ~ 480 mm; Code 128(5 mil):70 mm ~ 200 mm; Code 128(100 mil):\ ~ 1450 mm1; Data Matrix(10 mil):60 mm ~ 200 mm; QR Code(20 mil):45 mm ~ 370 mm; QR Code(100 mil):\ ~ 1000 mm1
CPU	8-core 2.2 GHz processor
Memory	RAM 4 GB, ROM 64 GB
Expansion slots	Micro SD card, Up to 512 GB
Operating system	Android 11.0
SIM	1× Nano-SIM slot, 1 Nano-SIM/TF combo slot (either/or), Dual SIM dual standby supported
Camera	Rear camera: 13 MP (color, autofocus)
Sensor type	Gravity sensor, Light sensor, Proximity sensor, E-compass, Gyroscope
Display	6.2-inch display (1520 × 720)
Touch screen	Capacitive touch, Glove mode not supported
Audio	Built-in speaker, Built-in dual microphones
Keypad	Volume +, - key, Power button, 2× side scan buttons
Operating frequency	-
Protocol standard	-
Reading distance	-
Data interface	Type-C, USB 2.0, OTG
Battery	5000 mAh, Non-removable battery; 5 V by default, 2 A adapter
Mobile network	2G:GSM B2/B3/B5/B8; 3G:WCDMA B1/B2/ B5/B8; 4G:FDD-LTE B1/B2/B3/B5/B7/B8/B20/B28a&b, TDD-LTE B34/B38/B39/B40/B41
Wi-Fi	IEEE802.11 a/b/g/n/ac, IEEE802.11 d/e/h/i/j/k/r/v
Bluetooth	BT5.0
Positioning	GPS, BeiDou, GLONASS
Dimension	166.4 mm × 80.6 mm × 13.5 mm
Weight	267 g (with battery)
Ingress protection	IP68
Temperature	Operating temp.: -20 to 55 °C; Storage temp.: -30 to 70 °C
Humidity	5% to 95% RH (non-condensing)
Drop rating	1.5 m drop onto concrete
ESD protection	±12 KV (air discharge), ±8 KV (contact discharge)
Laser safety class	Class 2
Wavelength	650 nm
Pulse width	4 ms
Maximum power	1 mW
Client software	Scan assistant, Enterprise desktop, etc.
Certification	CCC, CTA, SRRC
Shipping weight (estimated)	0.47 kg
