Handheld code readers

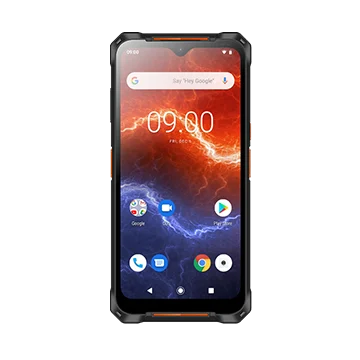

Hikrobot MV-IDP5204/4&64 6.2-inch 8-core full-screen PDA
Model MV-IDP5204/4&64
Hikrobot MV-IDP5204/4&64 6.2-inch 8-core full-screen PDA. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes Octa-core 2.2 GHz processor running Android 11.0
Features
- In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
- Octa-core 2.2 GHz processor running Android 11.0
- 6.2-inch display with 1520 × 720 resolution
- Rugged industrial design: IP68 protection and repeated 1.5 m drops
- 5000 mAh high-capacity battery for long runtime, with fast charging
- Fast roaming support with powerful Wi-Fi performance
Specifications
| Model | MV-IDP5204/4&64 |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417 |
| Min. accuracy | 3 mil |
| Detection angle | Horizontal 42°, Vertical 28° |
| Field of view | Tilt angle ±60°, Skew angle ±45°, Rotation angle 360° |
| Depth of field | Code 39(10 mil): 40 mm ~ 340 mm; Code 39(25 mil): 70 mm ~ 480 mm; Code 128(5 mil): 70 mm ~ 200 mm; Code 128(100 mil): 0 ~ 1450 mm1; Data Matrix(10 mil): 60 mm ~ 200 mm; QR Code(20 mil): 45 mm ~ 370 mm; QR Code(100 mil): 0 ~ 1000 mm1; Code 39(5 mil):35 mm ~ 240 mm; Code 39(10 mil):\ mm ~ 450 mm1; Code 39(20 mil):\ mm ~ 850 mm1; Code 128(10 mil):\ mm ~ 447 mm1; Data Matrix(10 mil):20 mm ~ 240 mm; QR Code(15 mil):\ mm ~ 400 mm1 |
| CPU | 8-core 2.2 GHz processor |
| Memory | RAM 4 GB, ROM 64 GB |
| Expansion slots | Micro SD card, Up to 512 GB |
| Operating system | Android 11.0 |
| SIM | 1× Nano-SIM slot, 1 Nano-SIM/TF combo slot (either/or), Dual SIM dual standby supported |
| Camera | Front camera: 5 MP (color, fixed focus); Rear camera: 13 MP (color, autofocus) |
| Sensor type | Gravity sensor, Light sensor, Proximity sensor, E-compass, Gyroscope |
| Display | 6.2-inch display (1520 × 720) |
| Touch screen | Capacitive touch, Glove mode not supported |
| Audio | Built-in speaker, Built-in dual microphones |
| Keypad | Volume +, - key, Power button, 2× side scan buttons |
| Operating frequency | 13.56 MHz |
| Protocol standard | ISO18092, ISO14443A/B, ISO15693 |
| Reading distance | Within 3 cm |
| Data interface | Type-C, USB 2.0, OTG |
| Battery | 5000 mAh, Non-removable battery; 9 V by default, 1.67 A adapter |
| Mobile network | 2G:GSM B2/B3/B5/B8; 3G:WCDMA B1/B2/ B5/B8; 4G:FDD-LTE B1/B2/B3/B5/B7/B8/B20/B28a&b, TDD-LTE B34/B38/B39/B40/B41 |
| Wi-Fi | IEEE802.11 a/b/g/n/ac, IEEE802.11 d/e/h/i/j/k/r/v |
| Bluetooth | BT5.0 |
| Positioning | GPS, BeiDou, GLONASS |
| Dimension | 166.4 mm × 80.6 mm × 13.5 mm |
| Weight | 267 g (with battery) |
| Ingress protection | IP68 |
| Temperature | Operating temp.: -20 to 55 °C; Storage temp.: -30 to 70 °C |
| Humidity | 5% to 95% RH (non-condensing) |
| Drop rating | 1.5 m drop onto concrete |
| ESD protection | ±12 KV (air discharge), ±8 KV (contact discharge) |
| Laser safety class | Class 2 |
| Wavelength | 650 nm |
| Pulse width | 4 ms |
| Maximum power | 1 mW |
| Client software | Scan assistant, Enterprise desktop, etc. |
| Certification | CCC, CTA, SRRC |
| Shipping weight (estimated) | 0.47 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guideOther sizes in the IDP Smart Handheld Terminal series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| MV-IDP3204/32G | Price on request | 3 in stock | View | |
| MV-IDP5104/AI4&64 | Price on request | 3 in stock | View | |
| MV-IDP5006/5G/4&64/05FR | Price on request | 5 in stock | View | |
| MV-IDP5006/5G/A/4&64/05FR | Price on request | 2 in stock | View | |
| MV-IDP5006/5G/4&64/05FR/H | Price on request | 4 in stock | View | |
| MV-IDP4104/4&64/DP/05NR | Price on request | 2 in stock | View | |
| MV-IDP5114/4&64/05FR | Price on request | 5 in stock | View | |
| MV-IDP3204/A/4&64 | Price on request | 5 in stock | View | |
| MV-IDP3204/64G | Price on request | 5 in stock | View | |
| MV-IDP5102/4&64 | Price on request | 2 in stock | View | |
| MV-IDP5204/A/4&64 | Price on request | 2 in stock | View |
