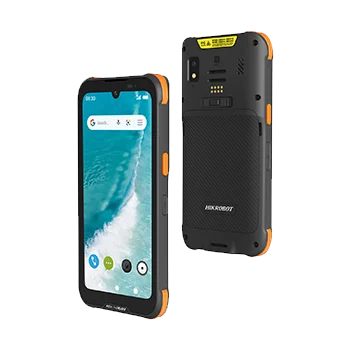

Hikrobot MV-IDP5006/5G/4&64/05FR 6-inch 5G PDA

Name: Hikrobot MV-IDP5006/5G/4&64/05FR 6-inch 5G PDA
Brand: Hikrobot
SKU: MV-IDP5006/5G/4&64/05FR

Model MV-IDP5006/5G/4&64/05FR

Hikrobot MV-IDP5006/5G/4&64/05FR 6-inch 5G PDA. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes Octa-core 2.6 GHz processor running Android 14.0

Datasheet (PDF, Chinese) - MV-IDP5006/5G/4&64/05FR User manual (PDF, Chinese) - MV-IDP5006/5G/4&64/05FR

Features

In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
Octa-core 2.6 GHz processor running Android 14.0
6.0-inch display with 720 × 1560 resolution
Rugged design: IP67 protection and repeated 1.5 m drops
5000 mAh high-capacity battery for long runtime, with fast charging
Fast roaming support with powerful Wi-Fi performance

Specifications

Model	MV-IDP5006/5G/4&64/05FR
Brand	Hikrobot
Symbologies	1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417
Min. accuracy	5 mil
Detection angle	Horizontal 42°, Vertical 28°
Field of view	Tilt angle ±60°, Skew angle ±45°, Rotation angle 360°
Depth of field	Code 39(5 mil):120 mm ~ 220 mm; Code 39(25 mil):70 mm ~ 750 mm; Code 128(10 mil):40 mm ~ 410 mm; Code 128(100 mil):0 ~ 2100 mm1; Data Matrix(10 mil):90 mm ~ 220 mm; QR Code(20 mil):45 mm ~ 400 mm; QR Code(100 mil):0 ~ 1400 mm1
CPU	8-core processor, up to 2.6 GHz
Memory	RAM 4 GB, ROM 64 GB
Expansion slots	TF card, Up to 512 GB
Operating system	Android 14.0
SIM	1× Nano-SIM slot, 1 Nano-SIM/TF combo slot (either/or), Dual SIM dual standby supported
Camera	Rear camera: 13 MP (color, autofocus); Front camera: 5 MP (color, fixed focus)
Sensor type	Gravity sensor, Light sensor, Proximity sensor
Display	6.0-inch display (720×1560)
Touch screen	Capacitive touch, Glove mode supported
Audio	Built-in speaker, Built-in dual microphones (with noise reduction)
Keypad	Volume +, - key, Power button, 2× side scan buttons
Operating frequency	13.56 MHz
Protocol standard	ISO14443A/B, ISO15693
Reading distance	Within 3 cm
Data interface	Type-C, USB 2.0, OTG
Battery	5000 mAh, Removable battery; 5 V by default, 2 A adapter
Mobile network	2G:GSM B3/B5/B8; 3G:WCDMA B1/B5/B8; 4G:FDD B1/B3/B5/B7/B8/B20/B28, TDD B34/B38/B39/B40/B41; 5G:NR N1/3/5/7/8/20/28/38/40/41/77/78
Wi-Fi	IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/ac/ax
Bluetooth	BT5.2
Positioning	GPS, BeiDou, GLONASS, Galileo
Dimension	165.4 mm × 77.6 mm × 14.9 mm
Weight	Approx. 280 g (with battery)
Ingress protection	IP67
Temperature	Operating temp.: -20 to 50 °C; Storage temp.: -30 to 60 °C
Humidity	0% to 95% RH (non-condensing)
Drop rating	1.5 m drop onto concrete
ESD protection	±15 KV (air discharge), ±8 KV (contact discharge)
Laser safety class	Class 2
Wavelength	650 nm
Pulse width	4 ms
Maximum power	1 mW
Client software	Scan assistant, Enterprise desktop, etc.
Certification	CCC, CTA, SRRC
Shipping weight (estimated)	0.49 kg
