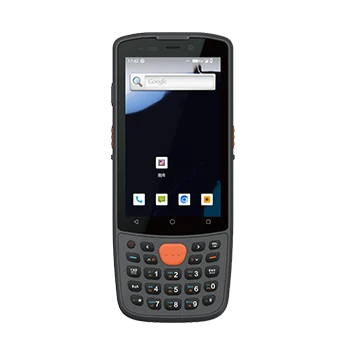

Hikrobot MV-IDP3204/64G Octa-core 4-inch keypad smart mobile terminal

Name: Hikrobot MV-IDP3204/64G Octa-core 4-inch keypad smart mobile terminal
Brand: Hikrobot
SKU: MV-IDP3204/64G

Model MV-IDP3204/64G

Hikrobot MV-IDP3204/64G Octa-core 4-inch keypad smart mobile terminal. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes Octa-core 2.0 GHz processor running Android 13.0

Datasheet (PDF, Chinese) - MV-IDP3204/64G User manual (PDF, Chinese) - MV-IDP3204/64G

Features

In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
Octa-core 2.0 GHz processor running Android 13.0
4.0-inch display with 800 × 480 resolution
Rugged industrial design: IP65 protection and repeated 1.5 m drops
4850 mAh high-capacity battery for long runtime, with fast charging
Fast roaming support with powerful Wi-Fi performance

Specifications

Model	MV-IDP3204/64G
Brand	Hikrobot
Symbologies	1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417
Min. accuracy	3 mil
Detection angle	Horizontal 42°, Vertical 28°
Field of view	Tilt angle ±60°, Skew angle ±45°, Rotation angle 360°
Depth of field	Code 39(10 mil):40 mm ~ 340 mm; Code 39(25 mil):70 mm ~ 480 mm; Code 128(5 mil):70 mm ~ 200 mm; Code 128(100 mil):0 ~ 1450 mm1; Data Matrix(10 mil):60 mm ~ 200 mm; QR Code(20 mil):45 mm ~ 370 mm; QR Code(100 mil):0 ~ 1000 mm1
CPU	8-core 2.0 GHz processor
Memory	RAM 4 GB, ROM 64 GB
Expansion slots	TF card, Up to 512 GB
Operating system	Android 13.0
SIM	1× Nano-SIM slot
Camera	Rear camera: 8 MP (color, autofocus)
Sensor type	Gravity sensor, Light sensor, Proximity sensor
Display	4.0-inch display (800×480)
Touch screen	Capacitive touch, Glove mode supported
Audio	Built-in speaker, Built-in single microphone
Keypad	Front: 23 keys, 1 power key; Side: 2 side scan keys, 1 programmable keys
Operating frequency	13.56 MHz
Protocol standard	ISO14443A/B, ISO15693
Reading distance	Within 3 cm
Data interface	Type-C, USB 2.0, OTG
Battery	4850 mAh, Removable battery; 5 V by default, 2 A adapter
Mobile network	2G:GSM B3/B5/B8; 3G:WCDMA B1/B5/B8; 4G:TDD B34/B38/B39/B40/B41, FDD-LTE B1/B3/B5/B8
Wi-Fi	IEEE 802.11 a/b/g/n/ac
Bluetooth	BT5.0
Positioning	GPS, BeiDou, GLONASS
Dimension	165.9 mm × 69.4 mm × 16.8 mm
Weight	265 g (with battery)
Ingress protection	IP65
Temperature	Operating temp.: -20 to 50 °C; Storage temp.: -40 to 60 °C
Humidity	5% to 95% RH (non-condensing)
Drop rating	1.5 m drop onto concrete
ESD protection	±15 KV (air discharge), ±8 KV (contact discharge)
Laser safety class	Class 2
Wavelength	650 nm
Pulse width	4 ms
Maximum power	1 mW
Client software	Scan assistant, Enterprise desktop, etc.
Certification	CCC, CTA, SRRC
Shipping weight (estimated)	0.47 kg
