Handheld code readers

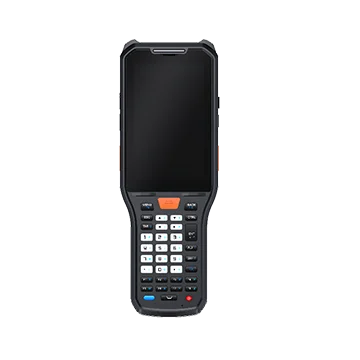

Hikrobot MV-IDP4104/4&64/DP/05NR Industrial full-keyboard PDA with area light
Model MV-IDP4104/4&64/DP/05NR
Hikrobot MV-IDP4104/4&64/DP/05NR Industrial full-keyboard PDA with area light. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes Octa-core 2.0 GHz high-performance processor running Android 11.0
Datasheet (PDF, Chinese) - MV-IDP4104/4&64/DP/05NRUser manual (PDF, Chinese) - MV-IDP4104/4&64/DP/05NR
Features
- In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
- Octa-core 2.0 GHz high-performance processor running Android 11.0
- 4.0-inch display with 480 × 800 resolution
- Rugged high-protection design withstands repeated 1.5 m drops
- 5200 mAh high-capacity battery for long runtime, with support for a 50 mAh spare battery
- Fast roaming support with powerful Wi-Fi performance
- Optional NFC
Specifications
| Model | MV-IDP4104/4&64/DP/05NR |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417 |
| Min. accuracy | 3 mil |
| Detection angle | Horizontal 42°, Vertical 28° |
| Field of view | Tilt angle ±60°, Skew angle ±45°, Rotation angle 360° |
| Depth of field | Code 39(5 mil):33 mm ~ 100 mm; Code 39(20 mil):60 mm ~ 210 mm; Code 128(3 mil):40 mm ~ 80 mm; Code 128(5 mil):30 mm ~ 100 mm; Code 128(10 mil):30 mm ~ 135 mm; Data Matrix(5 mil):50 mm ~ 80 mm; Data Matrix(10 mil):30 mm ~ 100 mm; QR Code(20 mil):45 mm ~ 150 mm |
| OCR | Rear camera and code reading module support OCR (Chinese, English and Arabic numerals) recognition |
| CPU | 8-core 2.0 GHz high-performance processor |
| Memory | RAM 4GB, ROM 64GB |
| Expansion slots | TF card, Up to 512 GB |
| Operating system | Android 11.0 |
| SIM | 2× Nano-SIM slot |
| Camera | Front camera: 5 MP (color, fixed focus); Rear camera: 13 MP (color, autofocus) |
| Sensor type | Accelerometer, Light sensor, Proximity sensor, Optional (electronic compass, gyroscope) |
| Display | 4.0-inch display (800×480) |
| Touch screen | Capacitive touch, Glove mode not supported |
| Audio | Built-in speaker, Built-in dual microphones (with noise reduction) |
| Keypad | Volume +/– keys, 1× PTT key, 2× side scan buttons, 37 front keypad keys |
| Data interface | Type-C |
| Battery | 5200 mAh, Removable battery; 50 mAh backup battery supported; 5 V by default, 2 A adapter |
| Mobile network | 2G:GSM B3/B5/B8; 3G:WCDMA B1/B5/B8; 4G:FDD B1/B3/B5/B7/B8/B20/B28, TDD B34/B38/B39/B40/B41 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac |
| Bluetooth | BT5.0(2.4GHz~2.8GHz) |
| Positioning | GPS, BeiDou, GLONASS |
| Dimension | 208.1 mm × 74.6 mm × 67.7 mm |
| Weight | Approx. 429 g (with battery) |
| Ingress protection | IP68 |
| Temperature | Operating temp.: -15 to 55 °C; Storage temp.: -40 to 60 °C |
| Humidity | 0% to 95% RH (non-condensing) |
| Drop rating | 1.5 m drop onto concrete |
| ESD protection | ±8 KV (air discharge), ±6 KV (contact discharge) |
| Laser safety class | Class 2 |
| Wavelength | 650 nm |
| Pulse width | 4 ms |
| Maximum power | 1 mW |
| Client software | Code scanning tool, Enterprise desktop, etc. |
| Certification | CCC, CTA, SRRC |
| Shipping weight (estimated) | 0.70 kg |
