Handheld code readers

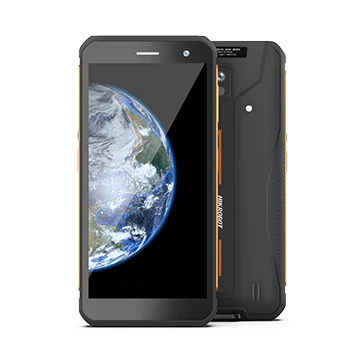

Hikrobot MV-IDP5104/AI4&64 5.5-inch full-screen PDA, AI version
Model MV-IDP5104/AI4&64
Hikrobot MV-IDP5104/AI4&64 5.5-inch full-screen PDA, AI version. In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes Octa-core 2.0 GHz high-performance processor running Android 10.0
Features
- In-house deep-learning algorithm efficiently reads difficult codes such as broken, ink-bleed, under-inked, laminated and damaged codes
- Octa-core 2.0 GHz high-performance processor running Android 10.0
- 5.5-inch display with 1440 × 720 resolution
- Rugged industrial design: IP68 protection and repeated 1.5 m drops
- 4900 mAh battery for long runtime
- Fast roaming support with powerful Wi-Fi performance
Specifications
| Model | MV-IDP5104/AI4&64 |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 11, Code 39, Code 93, Code 128, GS1, EAN, UPC-A, UPC-E, Interleaved 2 of 5, Codabar, Matrix 2 of 5, Industrial 2 of 5, Datalogic 2 of 5 (China Post), MSI Plessey, Pharmacode; Matrix 2D code: Data Matrix, QR Code, Micro QR Code, Aztec, Han Xin Code, MaxiCode, Data Matrix ECC140; Stacked 2D code: MicroPDF, PDF417 |
| Min. accuracy | 4 mil |
| Detection angle | Horizontal 42°, Vertical 28° |
| Field of view | Tilt angle ±60°, Skew angle ±45°, Rotation angle 360° |
| Depth of field | Code 39(5 mil):120 mm ~ 220 mm; Code 39(25 mil):70 mm ~ 750 mm; Code 128(10 mil):40 mm ~ 410 mm; Code 128(100 mil):0 ~ 2150 mm1; Data Matrix(10 mil):90 mm ~ 220 mm; QR Code(20 mil):45 mm ~ 400 mm; QR Code(100 mil):0 ~ 1400 mm1 |
| OCR | Rear camera and code reading module support OCR (Chinese, English and Arabic numerals) recognition |
| CPU | 8-core 2.0 GHz processor |
| Memory | RAM 4 GB, ROM 64 GB |
| Expansion slots | TF card, Up to 512 GB |
| Operating system | Android 10.0 |
| SIM | 1× Nano-SIM slot, 1 Nano-SIM/TF combo slot (either/or), Dual SIM dual standby supported |
| Camera | Front camera: 5 MP (color, fixed focus); Rear camera: 13 MP (color, autofocus) |
| Sensor type | Gravity sensor, Light sensor, Proximity sensor, E-compass, Gyroscope |
| Display | 5.5-inch IPS touchscreen (1440 × 720) |
| Touch screen | Capacitive touch, Glove mode supported |
| Audio | Built-in single speaker; Built-in dual microphones (with noise reduction) |
| Keypad | Volume +, - key, Power button, 2× side scan buttons |
| Operating frequency | 13.56 MHz |
| Protocol standard | ISO15693, ISO14443A, ISO14443B |
| Reading distance | Within 3 cm |
| Data interface | Type-C, USB 2.0, OTG |
| Battery | 4900 mAh, Non-removable battery; 5 V by default, 2 A adapter |
| Mobile network | 2G:GSM B2/B3/B5/B8; 3G:CDMA EVDO BC0, WCDMA B1/B2/B4/B5/B8, TD-SCDMA B34/B39; 4G:FDD-LTE B1/B2/B3/B4/B5/B7/B8/B20, TDD-LTE B34/B38/B39/B40/B41 |
| Wi-Fi | IEEE802.11 a/b/g/n/ac |
| Bluetooth | BT5.0 |
| Positioning | GPS, BeiDou, GLONASS |
| Dimension | 157 mm × 75 mm × 15 mm |
| Weight | 250 g (with battery) |
| Ingress protection | IP68 |
| Temperature | Operating temp.: -20 to 50 °C; Storage temperature: -40 to 70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Drop rating | 1.5 m drop onto concrete |
| ESD protection | ±8 KV (air discharge), ±6 KV (contact discharge) |
| Laser safety class | Class 2 |
| Wavelength | 650 nm |
| Pulse width | 4 ms |
| Maximum power | 1 mW |
| Client software | Code scanning tool, Enterprise desktop, etc. |
| Certification | CCC, CTA, SRRC |
| Shipping weight (estimated) | 0.45 kg |
