Handheld code readers

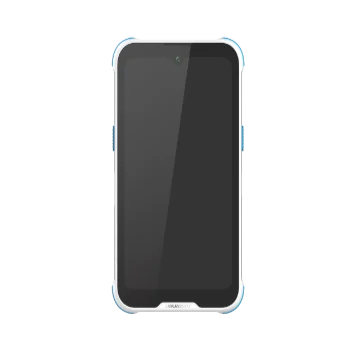

Hikrobot MV-IDP5006/5G/4&64/05FR/H Medical 6-inch 5G PDA
Model MV-IDP5006/5G/4&64/05FR/H
Hikrobot MV-IDP5006/5G/4&64/05FR/H Medical 6-inch 5G PDA. Medical-grade antibacterial, alcohol-resistant material In-house code-reading module and algorithm efficiently read difficult industrial codes: broken, ink-bleed, under-inked, laminated and damaged codes
Datasheet (PDF, Chinese) - MV-IDP5006/5G/4&64/05FR/HUser manual (PDF, Chinese) - MV-IDP5006/5G/4&64/05FR/H
Features
- Medical-grade antibacterial, alcohol-resistant material
- In-house code-reading module and algorithm efficiently read difficult industrial codes: broken, ink-bleed, under-inked, laminated and damaged codes
- 8-core high-performance processor up to 2.6 GHz, running Android 14.0
- 6.0-inch display with 720 × 1560 resolution
- Rugged design: IP67 protection and repeated 1.5 m drops
- 5000 mAh large battery for long runtime, with fast charging
- Fast roaming support with powerful Wi-Fi performance
- 13000, 000-pixel rear camera and 5 MP front camera for ultra-high-definition image capture
Specifications
| Model | MV-IDP5006/5G/4&64/05FR/H |
|---|---|
| Brand | Hikrobot |
| CPU | 8-core high-performance processor, up to 2.6 GHz |
| Memory | RAM 4GB, ROM 64GB |
| Expansion slots | Nano-SIM × 2 |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, UPCE, UPCA, Matrix 25, MSI Plessy, Code 11, Industrial 25, China Post, GS1, Pharmacode; 2D code: Data Matrix, QR Code, Micro QR, AZTEC, HANXIN; Stacked code: PDF 417 |
| Min. accuracy | 5 mil |
| Depth of field | Code 39(5 mil):120 mm ~ 220 mm; Code 39(25 mil):70 mm ~ 750 mm; Code 128(10 mil):40 mm ~ 410 mm; Data Matrix(10 mil):90 mm ~ 220 mm; QR Code(20 mil):45 mm ~ 400 mm; QR Code(100 mil):** ~ 1400 mm; Code 128(100 mil):** ~ 2100 mm |
| Resolution | Lens: code reading module (1 MP mono, global shutter); Front camera: 5 MP color, fixed focus; Rear camera: 13 MP color, autofocus |
| Operating frequency | 13.56 MHz NFC |
| Protocol standard | ISO14443A/B, ISO15693 |
| Tag standard | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Read/write distance | Within 3 cm |
| Power supply | Output: DC 5 V, 2.0 A; Input: AC 100 to 240 V, 50 ~ 60Hz |
| Battery | 5000 mAh |
| Mobile network | 2G:GSM850/GSM900/DCS1800; 3G:UMTS Bands:B1/B5/B8; 4G:B1/B3/B5/B7/B8/B20/B28/B34/B38/B39/B40/41; 5G:n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78 |
| Wi-Fi | IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v/ac/ax |
| Bluetooth | BT5.2(2.4 GHz ~ 2.8 GHz) |
| GPS | GPS, BeiDou, GLONASS, Gallileo |
| Communication interface | USB2.0, Type-C, OTG |
| Screen Size | 6.0-inch touchscreen (720 × 1560) |
| Dimension | 165.4 mm × 77.6 mm × 14.9 mm |
| Weight | Approx. 280 g (with battery) |
| Temperature | Operating temp.: -20 to 50 °C, Storage temp.: -30 to 60 °C |
| Humidity | 0% to 95% RH (non-condensing) |
| Ingress protection | IP67 |
| Drop rating | 1.5 m |
| Client software | Scanning service |
| Operating system | Android 14.0 |
| Shipping weight (estimated) | 0.49 kg |
