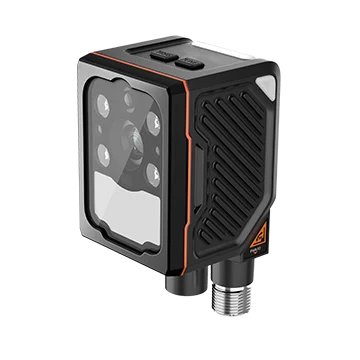

Hikrobot MV-ID8030XM-100N-XBN 3 MP industrial code reader
Model MV-ID8030XM-100N-XBN
Hikrobot MV-ID8030XM-100N-XBN 3 MP industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Carefully selected sensor for high-speed capture of high-quality images
- Liquid-lens models combine with ToF for fast image setup and real-time focusing
- Extremely easy to use: one-click auto-tuning
- Top and side status indicators plus projected light: code-reading status visible from every side
- Rotatable tail cable design adapts flexibly to tight spaces
- Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
- Rich I/O interface for multiple input and output signals
- IP67 protection for harsh industrial environments
Specifications
| Model | MV-ID8030XM-100N-XBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST, PHARMACODE; 2D code: QR Code, Data Matrix, Micro QR; Stacked code: PDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 90 codes/s |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 μm × 3.45 μm |
| Sensor size | 1/1.8” |
| Resolution | 2048×1536 |
| Exposure time | 6 μs ~ 30000 μs |
| Gain | 0 ~ 24 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EthernetIp, Modbus, FINS, UDP |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 12-pin M12 connector for power and I/O: 3 opto-isolated inputs (pin 0/1/2 input), 3 opto-isolated outputs (pin 3/4/5 output), 1× RS-232 interface; Device trigger via top button supported |
| Power supply | 24 VDC |
| Max. power consumption | 6.2 W @ 24 VDC (built-in light on) |
| Lens mount | M12-mount, mechanical focus |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Light source | Red spot light and white diffuse light, Spot light: white/blue/IR optional |
| Aiming system | Orange LED |
| Indicator | Device body indicator, reading result indicator |
| Dimension | Straight: 80.1 mm × 43 mm × 44.3 mm; Right-angle: 58.5 mm × 43 mm × 65.4 mm |
| Weight | Approx. 195 g (0.4 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.37 kg |
