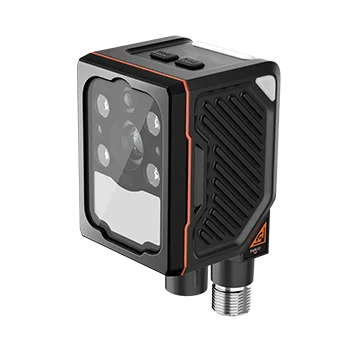

Hikrobot CS-RD248-L 1.6 MP resolution industrial code reader
Model CS-RD248-L
Hikrobot CS-RD248-L 1.6 MP resolution industrial code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Carefully selected sensor for high-speed capture of high-quality images
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Carefully selected sensor for high-speed capture of high-quality images
- Liquid-lens models combine with ToF for fast image setup and real-time focusing
- Extremely easy to use: one-click auto-tuning
- Top and side status indicators plus projected light: code-reading status visible from every side
- Rotatable tail cable design adapts flexibly to tight spaces
- Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
- Rich I/O interface for multiple input and output signals
- IP67 protection for harsh industrial environments
Specifications
| Model | CS-RD248-L |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF25, Matrix 25, MSI, China Post, Code 11, Industrial 2 of; 5, Pharmacode (single/dual track); Matrix 2D code: QR Code (incl. GS1-QR), Data, Matrix (incl. GS1-DM), MicroQR, AZTEC, HanXin, Maxi Code; Stacked 2D code: PDF417, MicroPDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 110 codes/s |
| Sensor type | Global shutter, Mono, 1/2.53”, 3.45 µ m × 3.45 µm |
| Resolution | 1408 × 1200 |
| Exposure time | 25 μs ~ 30000 μs |
| Gain | 0 ~ 24 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Digital I/O | 12-pin M12 connector for power and I/O: 3 opto-isolated inputs (pin 0/1/2 input), 3 opto-isolated outputs (pin 3/4/5 output), 1× RS-232 interface; Device trigger via top button supported |
| Power supply | 24 VDC |
| Power consumption | Average power: 6.2W@24VDC (built-in fill light on); Max. power: 16.8W@24VDC (built-in fill light on) |
| Focal length | 12 mm |
| Field of view | 22°(H) x 19°(V) |
| Lens mount | D14-mount, liquid lens focusing |
| Lens cap | Polarized + diffuser + full-transparent lens cap |
| Light source | Red point light source + white diffused light source. White/blue/IR/UV point light source is optional. |
| Aiming system | Orange LED |
| Indicator | Device body indicator, reading result indicator |
| Shell material | Metal |
| Dimension | Straight: 80.1 mm × 43 mm × 44.3 mm; Right-angle: 58.5 mm × 43 mm × 65.4 mm |
| Weight | Approx. 195 g (0.4 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Operating temp.: 0 to 45 °C, Storage temp.: -30 to 70 °C |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Bare unit, 10 Hz ~ 55 Hz, Full amplitude 1.5 mm, X, Y, Z directions, 2 h each (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.37 kg |
