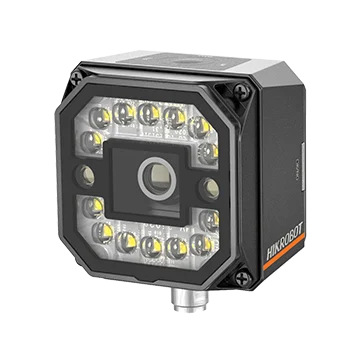

Hikrobot MV-ID3013PM-06M-WBN 6mm focal length 1.3MP Compact Industrial Code Reader
Model MV-ID3013PM-06M-WBN
Hikrobot MV-ID3013PM-06M-WBN 6mm focal length 1.3MP Compact Industrial Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts multiple I/O interfaces for input and output signals.
Datasheet (PDF) - MV-ID3013PM-06M-WBNUser manual (PDF) - MV-ID3013PM-06M-WBNCAD: 3D STEP + 2D DXF (ZIP) - MV-ID3013PM-06M-WBN
Features
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts multiple I/O interfaces for input and output signals.
- Adopts 14 LED lights to provide light source.
- Supports polarized and non-polarized modes.
- Adopts 2 LED aiming lights for easy installation and code aiming.
- Indicators on device display device status and code reading results.
Specifications
| Model | MV-ID3013PM-06M-WBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25; 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin, Maxi code; Stacked codes: PDF417, MicroPDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 84 codes/sec |
| Sensor type | Global shutter, mono, 1/2.7", 4 μm × 4 μm |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs to 1 sec |
| Gain | 0 dB to 28 dB |
| Data interface | Fast Ethernet (100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, ModBus, UDP, Fins, Modbus RTU |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top.;17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1/2) × 3, isolated output (LineOut 3/4/5) × 3, RS-232 × 1. Supports device triggering via pressing button on top. |
| Power supply | 24 VDC |
| Power consumption | Avg.: 9 W @ 24 VDC (light source enabled); Max.: 48 W @ 24 VDC (light source enabled) |
| Focal length | 6 mm |
| Field of view | 46° (H) × 37° (V) |
| Lens mount | M12-mount, mechanical focus supported |
| Lens cap | Half-polarized lens cap by default. Transparent, fully-polarized, diffused, and long-wave IR lens caps are optional. |
| Light source | White light by default. Red/blue/IR/UV light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Shell material | ADC12 |
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.49 kg |
