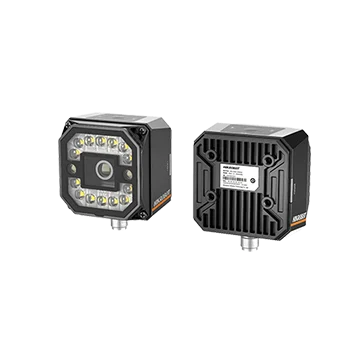

Hikrobot MV-ID3400L-16S-WBN 1.3 MP Smart Code Reader
Model MV-ID3400L-16S-WBN
Hikrobot MV-ID3400L-16S-WBN 1.3 MP Smart Code Reader. Adopts built-in deep learning algorithm to read codes with good robustness. Adopts CMOS global shutter sensor to provide high quality images.
Features
- Adopts built-in deep learning algorithm to read codes with good robustness.
- Adopts CMOS global shutter sensor to provide high quality images.
- Adopts multiple IO interfaces for input and output signals.
- Adopts 14 LED lamps to provide light source.
- Supports polarized and non-polarized modes.
- Adopts 2 LED aiming lamps for easy installation and code aiming.
- Indicators on device display device status and code reading results.
Specifications
| Model | MV-ID3400L-16S-WBN |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25<br/>2-dimensional codes: QR Code, Data Matrix<br/>Stack codes: PDF 417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 84 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 4 μm × 4 μm |
| Sensor size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Data interface | Fast Ethernet |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. <br/>Device trigger via pressing button on top supported. |
| Power supply | 24 VDC |
| Max. power consumption | Approx. 20 W@24 VDC (light source enabled) |
| Focal length | 6 mm (0.2") |
| Lens mount | M12-mount, mechanical autofocus supported. |
| Lens cap | Half polarized front cover by default. Polarized and transparent ones are optional. |
| Light source | White light by default. Red/blue/IR light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)<br/>Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client software | IDMVS |
| Certification | CE, RoHS |
| Shipping weight (estimated) | 0.49 kg |
