Fixed code readers

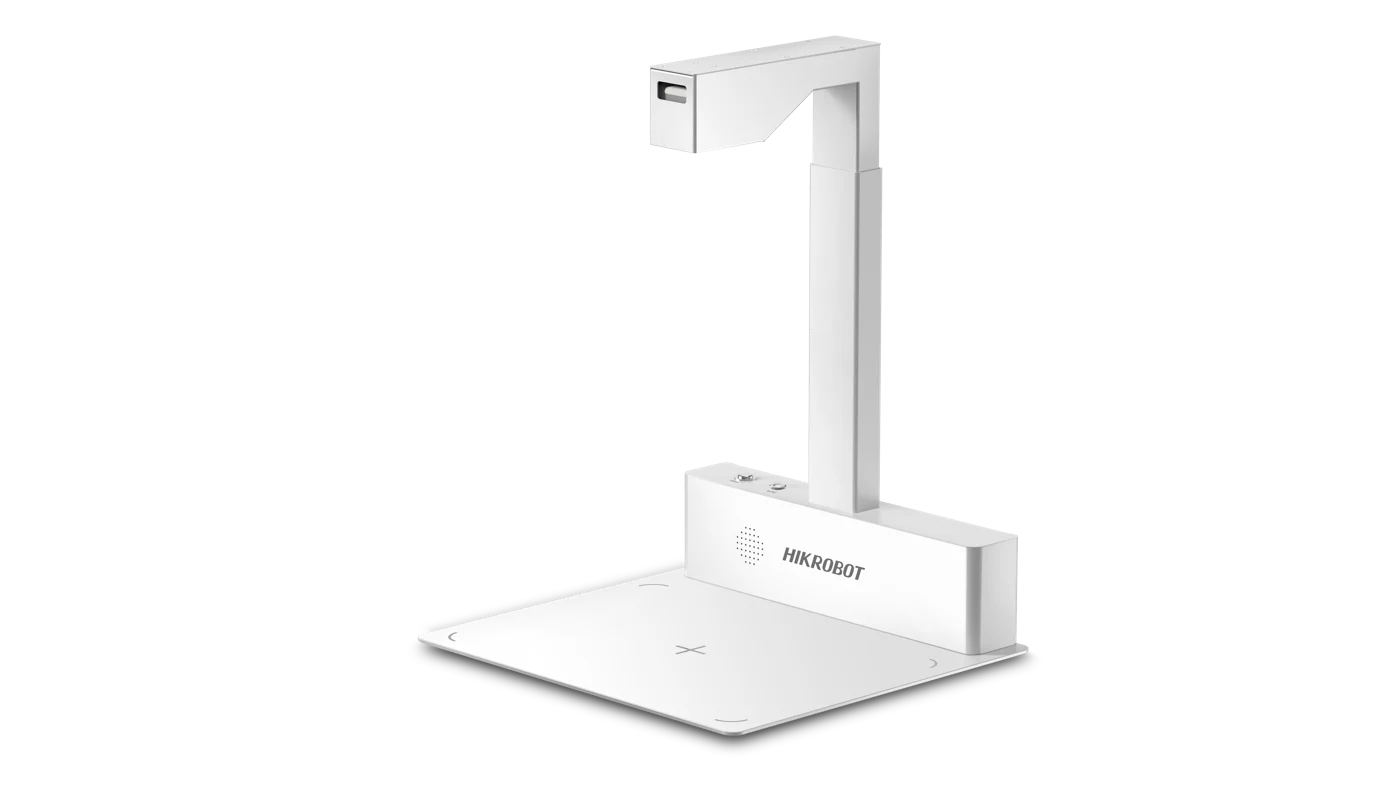

Hikrobot MV-IDGZZ3698 For pharmaceutical traceability
Model MV-IDGZZ3698
Hikrobot MV-IDGZZ3698 For pharmaceutical traceability. SoC with a dedicated deep-learning hardware core and models trained on millions of samples Real-time code-reading feedback via body indicator and projected light spot
Features
- SoC with a dedicated deep-learning hardware core and models trained on millions of samples
- Real-time code-reading feedback via body indicator and projected light spot
- One-touch power-on and plug-and-play: set up without installing client software
- Focus output support for seamless HIS integration
- Feature-rich: duplicate-code filtering, presence-sensing trigger and more
- Soft lighting optimized for comfortable human interaction
- Voice announcement of the number of medicine boxes read
- Adjustable height
Specifications
| Model | MV-IDGZZ3698 |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, ITF25, ITF14, MATRIX25, UPCA, UPCE, MSI, CODE11, INDUSTRIAL25, CHINAPOST, PHARMACODE; 2D code: QR Code, Data Matrix, Micro QR, Hanxin; Stacked code: PDF417 |
| Max. frame rate | 60 fps |
| Max. reading speed | 110 codes/s |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm×3.45 µm |
| Sensor size | 1/2.9” |
| Resolution | 1536×1264 |
| Exposure time | 25 μs ~ 30 ms |
| Gain | 0 ~ 24 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Data interface | Type-C port: focus output; RJ45 Ethernet port: communication protocol |
| Power supply | 24 VDC |
| Max. power consumption | 6.2 W @ 24 VDC (built-in light on) |
| Focal length | 6mm |
| Lens mount | M12-mount, mechanical focus |
| Lens cap | Fully polarized lens cover |
| Light source | Red light |
| Indicator | Body status indicators, Code reading OK/NG result indicator |
| Dimension | 357 mm×343 mm×469.3 mm |
| Weight | Approx. 4 kg |
| Humidity | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Temperature | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Shipping weight (estimated) | 5.70 kg |
