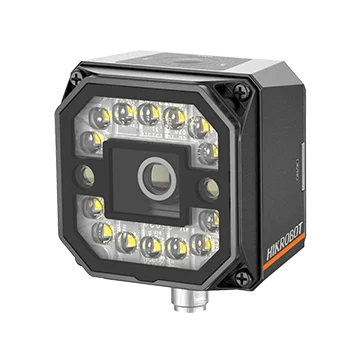

Hikrobot MV-IDT6P3M-W-12M 1.3 MP smart code reader
Model MV-IDT6P3M-W-12M
Hikrobot MV-IDT6P3M-W-12M 1.3 MP smart code reader. Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions Single cable provides a rich I/O interface for multiple input and output signals
Features
- Built-in deep-learning decoding algorithm: robust under a wide range of difficult conditions
- Single cable provides a rich I/O interface for multiple input and output signals
- 14-LED composite light with flexible grouping
- Polarization support: switch quickly between polarized and non-polarized modes
- Top ring indicator and dual side-strip result indicators show working status at a glance
- Built-in dual LED aimer for easy alignment
Specifications
| Model | MV-IDT6P3M-W-12M |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, Matrix 2 of 5, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc.; 2D code: QR Code, Data Matrix, etc.; Stacked code: PDF417, etc. |
| Max. frame rate | 60 fps |
| Max. reading speed | 80 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 4 μm × 4 μm |
| Sensor size | 1/2.7” |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs ~ 1 sec |
| Gain | 0 dB ~ 23 dB |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ; ModBus, Fins, SLMP |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs; (LineOut 3/4/5), 1× RS-232, Device trigger via top button supported |
| Power supply | 24 VDC |
| Max. power consumption | 20 W @ 24 VDC (built-in light on) |
| Focal length | 12mm |
| Lens mount | M12-mount, mechanical focus |
| Lens cap | Polarizing lens cover |
| Light source | Focused white light, Focused red/blue/IR light optional |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 47 mm |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.49 kg |
