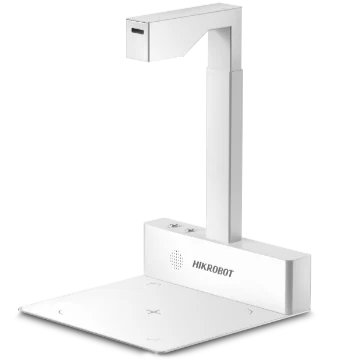

Hikrobot MV-IDM-B08 Cost-effective 2 MP resolution, White light, Fully polarized fast-boot pharmaceutical code recognition all-in-one unit
Model MV-IDM-B08
Hikrobot MV-IDM-B08 Cost-effective 2 MP resolution, White light, Fully polarized fast-boot pharmaceutical code recognition all-in-one unit. SoC with a dedicated deep-learning hardware core and models trained on millions of samples Real-time code-reading status feedback with status indicator
Datasheet (PDF, Chinese) - MV-IDM-B08User manual (PDF, Chinese) - MV-IDM-B08CAD: 3D STEP + 2D DXF (ZIP) - MV-IDM-B08
Features
- SoC with a dedicated deep-learning hardware core and models trained on millions of samples
- Real-time code-reading status feedback with status indicator
- Voice announcements on some models: startup complete and automatic medicine box count
- Height-adjustable on some models for flexible switching between pharmacy and production use
- One-button start, plug and play
- Focus output support for seamless HIS integration
- Feature-rich: duplicate-code filtering, presence-sensing trigger and more
- Soft lighting optimized for comfortable human interaction
Specifications
| Model | MV-IDM-B08 |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), CodaBar, EAN8, EAN13, ITF25, ITF14, Matrix25, UPCA, UPCE, MSI, Code11, Industrial 2of5, China Post, Pharmacode; 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, AZTEC, Hanxin; Stacked code: PDF417 |
| Max. frame rate | 60 fps |
| Resolution | 1536×1264 |
| Mono/color | Mono |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP |
| Data interface | Type-C port: focus output; RJ45 Ethernet port: data transfer (100 Mbps Ethernet) |
| Power supply | 24 VDC |
| Max. power consumption | 4 W@24 VDC |
| Lens mount | Approx. 4.6 W @ 5 VDC |
| Lens cap | Polarizing lens cover |
| Light source | White LED lamp |
| Indicator | Body status indicators, Code reading OK/NG result indicator |
| Voice prompts | Voice announcements supported (announces "startup complete" at power-on, automatically announces medicine box count) and volume adjustment |
| Height adjustment | Factory default height: 360 mm; Adjustment range: 340 to 440 mm |
| Dimension | 342 mm×310 mm×417.5 mm |
| Weight | Approx. 5 kg (11 lb.) |
| Humidity | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Temperature | 20% RH to 95% RH (no condensation) |
| Client software | IDMVS |
| Shipping weight (estimated) | 7.10 kg |
