Fixed code readers

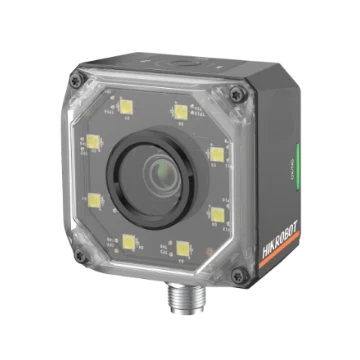

Hikrobot MV-IDC005X-06MW-8 8 LEDs, 1.3MP, 6 mm mechanical-focus lens, White light, Distribution model
Model MV-IDC005X-06MW-8
Hikrobot MV-IDC005X-06MW-8 8 LEDs, 1.3MP, 6 mm mechanical-focus lens, White light, Distribution model. Carefully selected sensor for high-speed capture of high-quality images Single cable provides a rich I/O interface for multiple input and output signals
Features
- Carefully selected sensor for high-speed capture of high-quality images
- Single cable provides a rich I/O interface for multiple input and output signals
- External waterproof setup button supports manual external triggering
- Top ring indicator shows working status at a glance
- Dual side-strip result indicators: OK/NG read status visible from multiple angles
- Modular light design with independently controllable zones for easy replacement
Specifications
| Model | MV-IDC005X-06MW-8 |
|---|---|
| Brand | Hikrobot |
| Symbologies | 1D code: Code 39, Code 93, Code 128, CodaBar, EAN8, EAN13, UPCA, UPCE, ITF14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 25, etc.; Matrix 2D code: QR Code, Data Matrix, AZTEC, MicroQR, HANXIN, etc.; Stacked 2D code: PDF417, etc. |
| Max. frame rate | 60 fps |
| Max. reading speed | 84 codes/sec |
| Sensor type | Global shutter, mono, 1/2.7", 4 μm × 4 μm |
| Resolution | 1280 × 1024 |
| Exposure time | 35 μs ~ 1 sec |
| Gain | 0 dB ~ 23 dB |
| Data interface | Fast Ethernet(100 Mbit/s) |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Melsec/SLMP, EtherNet/IP, ModBus, UDP, FINS |
| Digital I/O | 17-pin M12 connector for power and I/O: 3 non-isolated inputs (LineIn 0/1/2), 3 non-isolated outputs (LineOut 3/4/5), 1× RS-232, Device trigger via top button supported |
| Power supply | 24 VDC |
| Max. power consumption | Avg. power: 9 W @ 24 VDC (built-in light on); Max. power: 48 W @ 24 VDC (built-in light on) |
| Focal length | 6 mm |
| Field of view | 46° (H) × 37° (V) |
| Lens mount | M12-mount, mechanical focus |
| Lens cap | Clear, Optional full-polarization lens cover |
| Light source | White light, Optional red/blue/IR light |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm×65.2 mm×42 mm |
| Shell material | Metal |
| Weight | Approx. 250 g |
| Ingress protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Vibration resistance | Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019) |
| Shock resistance | Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019) |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 0.45 kg |
