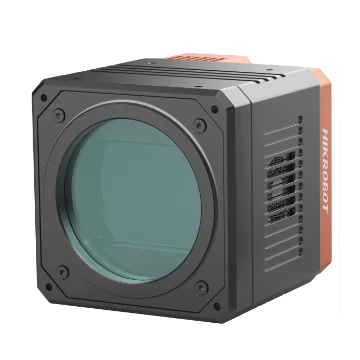

Hikrobot MV-CH6040-10XC-M72-NF 604 MP CoaXPress area scan camera, IMX411, Color, With fan
Model MV-CH6040-10XC-M72-NF
Hikrobot MV-CH6040-10XC-M72-NF 604 MP CoaXPress area scan camera, IMX411, Color, With fan. Resolution 28416 × 21280, pixel size 3.76 µm Selectable 1.51 × 100-million-pixel or 6.04 × 100-million-pixel resolution modes; built-in ISP algorithms improve image quality
Datasheet (PDF, Chinese) - MV-CH6040-10XC-M72-NFUser manual (PDF, Chinese) - MV-CH6040-10XC-M72-NFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH6040-10XC-M72-NF
Features
- Resolution 28416 × 21280, pixel size 3.76 µm
- Selectable 1.51 × 100-million-pixel or 6.04 × 100-million-pixel resolution modes; built-in ISP algorithms improve image quality
- Rolling-shutter CMOS with high dynamic range and low noise
- FFC and LSC correction eliminate pixel-to-pixel response differences
- 16-bit ADC output for high sampling precision
- CXP-6 interface for data transmission
- Compatible with CoaXPress and the GenICam standard
Specifications
| Model | MV-CH6040-10XC-M72-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Sensor model | Sony IMX411 |
| Pixel size | 3.76 μm × 3.76 μm |
| Sensor size | 66.7 mm |
| Resolution | 28416 × 21280 |
| Max. frame rate | 1.38 fps @14208 × 10640 RGB 8 |
| Dynamic range | 78.7 dB |
| SNR | 46.4 dB |
| Gain | 0 ~ 40 dB |
| Exposure time | 15 μs ~ 10 s |
| Exposure mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset |
| Mono/color | Color |
| Pixel format | Bayer RG 8/10/12/16; RGB 8/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power supply | 24 VDC |
| Power consumption | 15 W @24 VDC |
| Lens mount | M72*0.75, back focal length 19.55 mm |
| Dimension | 100 mm × 100 mm × 128.5 mm |
| Weight | Approx. 1.4 kg (3.1 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Performance temperature: 20 °C to 35 °C (68 °F to 95 °F); Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | Frame grabber software meeting with CoaXPress Protocol |
| Operating system | Windows 7/10 32/64bits, Windows 11 64 bits, Linux 32/64bits |
| Compatibility | CoaXPress, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 2.06 kg |
