Hikrobot MV-CH250-20XC-M58S-NN 25 MP CoaXPress area scan camera, PYTHON25K, CXP-6 interface, Color, M58 connector, Fanless
Model MV-CH250-20XC-M58S-NN

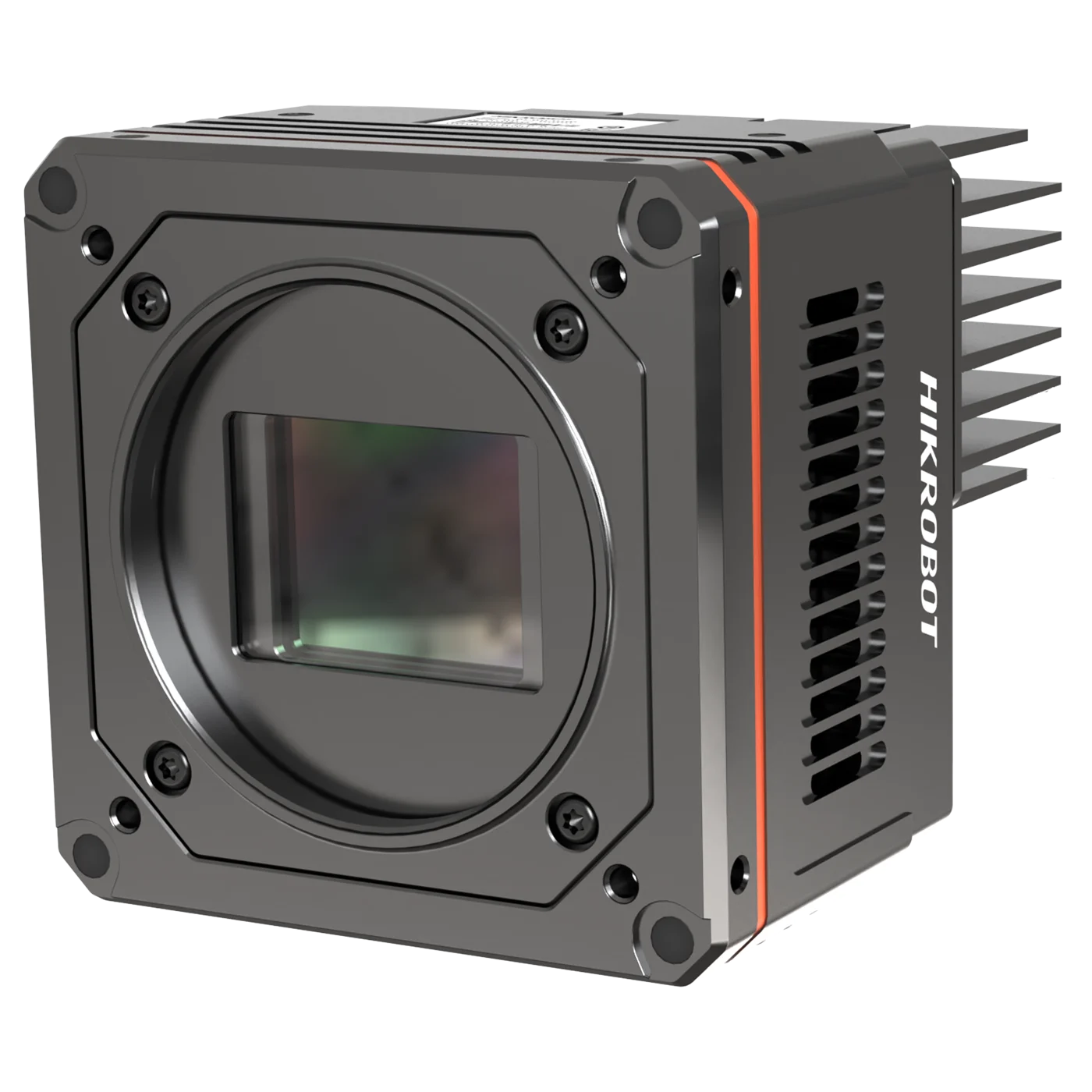

Hikrobot MV-CH250-20XC-M58S-NN 25 MP CoaXPress area scan camera, PYTHON25K, CXP-6 interface, Color, M58 connector, Fanless. Resolution 5120 × 5120, pixel size 4.5 µm Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
Datasheet (PDF, Chinese) - MV-CH250-20XC-M58S-NNUser manual (PDF, Chinese) - MV-CH250-20XC-M58S-NNCAD: 3D STEP + 2D DXF (ZIP) - MV-CH250-20XC-M58S-NN
Features
- Resolution 5120 × 5120, pixel size 4.5 µm
- Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
- Multiple LSC and HDR polling groups
- Low-power fanless design for stable on-the-fly capture
- CXP-6 interface for data transmission
- Compliant with the CoaXPress protocol and GenICam
Specifications
| Model | MV-CH250-20XC-M58S-NN |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | OnSemi PYTHON25K |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 23 mm (H) x 23 mm (V) |
| Resolution | 5120 × 5120 |
| Max. frame rate | 80 fps@5120 × 5120 Bayer RG 8 |
| Dynamic range | 58 dB |
| SNR | 41 dB |
| Gain | 0 ~ 15 dB |
| Exposure time | 33 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector for power and I/O, 1 opto-isolated input (Line 0), 1 opto-isolated output (Line 1), 1 bidirectional configurable non-isolated I/O (Line 2), 1× RS-232 |
| Power supply | 9 ~ 24 VDC, CXP-0 and CXP-1 ports support PoCXP power |
| Power consumption | 10.5 W@24 VDC |
| Lens mount | M58*0.75, flange back length 11.48 mm |
| Dimension | 84 mm × 84 mm × 92.5 mm |
| Weight | Approx. 730 g |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% to 95% RH (non-condensing) |
| Client software | MVS or CoaXPress-compliant frame grabber control software |
| Operating system | Windows 7/10/11 32/64 bits |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.12 kg |
