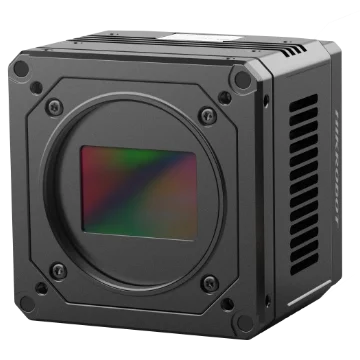

Hikrobot MV-CH210-90YC-M58S-NF 21 MP CoaXPress area scan camera, Gsprint4521, CXP-12 interface, Color, M58 connector, With fan
Model MV-CH210-90YC-M58S-NF
Hikrobot MV-CH210-90YC-M58S-NF 21 MP CoaXPress area scan camera, Gsprint4521, CXP-12 interface, Color, M58 connector, With fan. Resolution 5120 × 4096, pixel size 4.5 µm Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
Datasheet (PDF, Chinese) - MV-CH210-90YC-M58S-NFUser manual (PDF, Chinese) - MV-CH210-90YC-M58S-NFCAD: 3D STEP + 2D DXF (ZIP) - MV-CH210-90YC-M58S-NF
Features
- Resolution 5120 × 4096, pixel size 4.5 µm
- Global-shutter CMOS with high dynamic range, good signal-to-noise ratio and excellent image quality
- Low-power fanless design for stable on-the-fly capture
- CXP-12 interface for data transmission
- Compatible with CoaXPress and the GenICam standard
Specifications
| Model | MV-CH210-90YC-M58S-NF |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, global shutter |
| Sensor model | Gpixel Gsprint4521 |
| Pixel size | 4.5 μm × 4.5 μm |
| Sensor size | 23.04 mm × 18.43 mm |
| Resolution | 5120 × 4096 |
| Max. frame rate | 222 fps @5120 × 4096 Bayer GB 8 |
| Dynamic range | 65 dB |
| SNR | 43 dB |
| Gain | 1.0x, 2.0x, 4.0x |
| Exposure time | 4 μs ~ 10 sec |
| Exposure mode | Off/Once/Continuous exposure mode |
| Mono/color | Color |
| Pixel format | Bayer GB 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse image | Supports horizontal and vertical reverse image output |
| Data interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP |
| Power consumption | 18.7 W @24 VDC |
| Lens mount | M58*0.75 |
| Dimension | 84 mm × 84 mm ×75 mm |
| Weight | Approx. 790 g (1.7 lb.) |
| Ingress protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating system | Windows 7/10/11 32/64bits |
| Compatibility | CoaXPress, GenICam |
| Certification | CE, RoHS, KC |
| Shipping weight (estimated) | 1.21 kg |
