Machine vision lenses

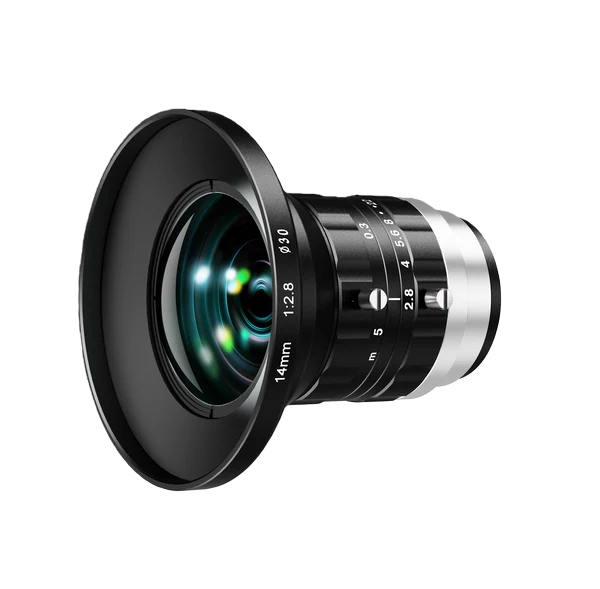

14mm, F2.8, Image circle φ30 mm, Recommended magnification 0.0027x ~ 0.0136x ~ 0.043x, M42-mount lens (LS-AF1428M-M42B)
Model LS-AF1428M-M42B
14mm, F2.8, Image circle φ30 mm, Recommended magnification 0.0027x ~ 0.0136x ~ 0.043x, M42-mount lens. High-precision lens for 4K 7 μm line-scan cameras Very high resolving power even at maximum aperture F2.8
Features
- High-precision lens for 4K 7 μm line-scan cameras
- Very high resolving power even at maximum aperture F2.8
- Maximum image circle Φ30 mm
Specifications
| Model | LS-AF1428M-M42B |
|---|---|
| Focal length | 14 mm |
| F-number | F2.8 ~ F22 |
| Image size | Φ30 mm |
| Optical distortion | -2.20% |
| Magnification range | 0.0027x ~ 0.0136x ~ 0.043x |
| Working distance range | 5000 ~ 1000 ~ 300 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M86 × P1 |
| Connector type | M42 × P1 |
| Flange back length | 12 mm |
| Dimension | Φ89 ×78.8 mm |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
