Machine vision lenses

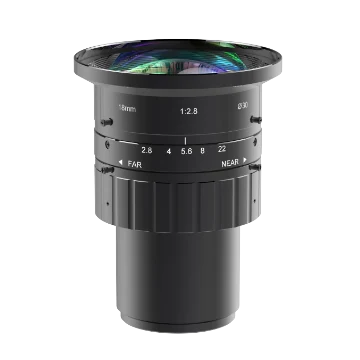

18mm, F2.8, Image Size φ30mm, Recommended Magnification 0.012~0.105X, M42-Mount (LS-AF1828M-M42B)
Model LS-AF1828M-M42B
18mm, F2.8, Image Size φ30mm, Recommended Magnification 0.012~0.105X, M42-Mount. Adopts high-resolution lens for 4k 7 μm line scan cameras. Provides ultra-high image resolution at the max. aperture of F2.8.
Features
- Adopts high-resolution lens for 4k 7 μm line scan cameras.
- Provides ultra-high image resolution at the max. aperture of F2.8.
- Provides max. image size Φ30 mm.
Specifications
| Model | LS-AF1828M-M42B |
|---|---|
| Focal length | 18 mm |
| F-number | F2.8 to F22 |
| Image size | Φ30 mm |
| Optical distortion | –1.1% |
| Magnification range | 0.012 x to 0.105 x |
| Working distance range | 150 mm to 1500 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M72 × P0.75 |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Dimension | Φ74 mm × 92.16 mm (Φ2.9" × 3.6") |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Weight | 438.5 g (1.0 lb.) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.71 kg |
