Machine vision lenses

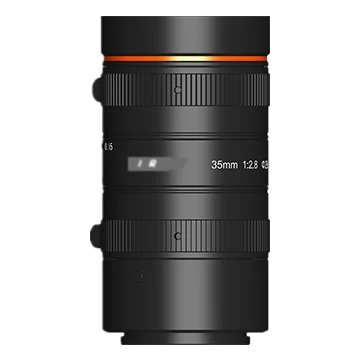

35mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.164X, M42-Mount (LS-AF3528M-M42A)
Model LS-AF3528M-M42A
35mm, F2.8, Image Size φ29mm, Recommended Magnification 0.001x ~ 0.164X, M42-Mount. Adopts high-precision lens for 8k 7 μm line scan cameras. Provides excellent consistency of image clarity and low distortion.
Features
- Adopts high-precision lens for 8k 7 μm line scan cameras.
- Provides excellent consistency of image clarity and low distortion.
- Provides ultra-high image resolution at the max. aperture of F2.8.
- Provides max. image size Φ29 mm.
Specifications
| Model | LS-AF3528M-M42A |
|---|---|
| Focal length | 35 mm |
| F-number | F2.8 to F16 |
| Image size | Φ29 mm |
| Optical distortion | –0.16% |
| Magnification range | 0.164 x to 0.001 x |
| Working distance range | 200 mm to inf mm (tolerance: ±5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M52 × P0.75 |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Dimension | Φ55 mm × 102.5 mm (Φ2.2" × 4.0") |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the AF series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-AF1828M-M42B | $639.00 | 4 in stock | View | |
| LS-AF2045M-M42 | $639.00 | 3 in stock | View | |
| LS-AF2524M-M42 | $639.00 | 4 in stock | View | |
| LS-AF2840M-M42 | $639.00 | 3 in stock | View | |
| LS-AF3528M-M42 | $639.00 | 2 in stock | View | |
| LS-AF4028M-M42 | $639.00 | 3 in stock | View | |
| LS-AF5028M-M42A | $639.00 | 3 in stock | View | |
| LS-AF5040M-M42 | $639.00 | 2 in stock | View |
