Machine vision lenses

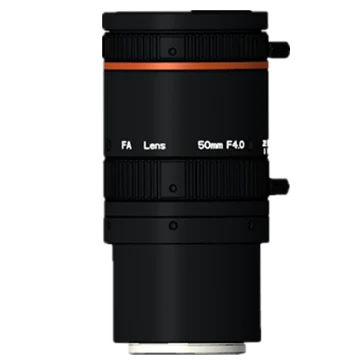

50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.323X, M42-Mount (LS-AF5040M-M42)
Model LS-AF5040M-M42
50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.323X, M42-Mount. Provides ultra-high image resolution and compatible with 3.1 μm resolution. Provides excellent consistency of image clarity, large aperture, low distortion, low chromatic aberration, and high relative illumination.
Features
- Provides ultra-high image resolution and compatible with 3.1 μm resolution.
- Provides excellent consistency of image clarity, large aperture, low distortion, low chromatic aberration, and high relative illumination.
- Provides max. image size Φ37 mm for APS-C area scan and 4k 7 μm line scan cameras.
Specifications
| Model | LS-AF5040M-M42 |
|---|---|
| Focal length | 50 mm |
| F-number | F4 to F22 |
| Image size | Φ37 mm |
| Optical distortion | 0.21% |
| Magnification range | 0.323 x to 0.01 x |
| Working distance range | 150 mm to inf mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M52 × 0.75 |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Dimension | Φ59 mm × 133.2 mm (Φ2.3" × 5.2") |
| Weight | 615 g (1.4 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.96 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the AF series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-AF1828M-M42B | $639.00 | 4 in stock | View | |
| LS-AF2045M-M42 | $639.00 | 3 in stock | View | |
| LS-AF2524M-M42 | $639.00 | 4 in stock | View | |
| LS-AF2840M-M42 | $639.00 | 3 in stock | View | |
| LS-AF3528M-M42 | $639.00 | 2 in stock | View | |
| LS-AF3528M-M42A | $639.00 | 4 in stock | View | |
| LS-AF4028M-M42 | $639.00 | 3 in stock | View | |
| LS-AF5028M-M42A | $639.00 | 3 in stock | View |
