Machine vision lenses

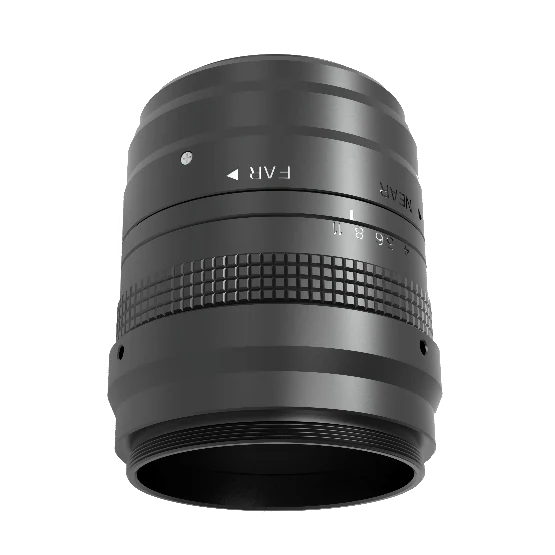

28mm, F4.0, Image Size φ30mm, Recommended Magnification 0.05~0.3X, M42-Mount (LS-AF2840M-M42)
Model LS-AF2840M-M42
28mm, F4.0, Image Size φ30mm, Recommended Magnification 0.05~0.3X, M42-Mount. Provides excellent consistency of image clarity. Provides low distortion.
Features
- Provides excellent consistency of image clarity.
- Provides low distortion.
- Provides max. image size Ø30 mm for APS-C area scan and 4k 7 μm line scan cameras.
Specifications
| Model | LS-AF2840M-M42 |
|---|---|
| Focal length | 28 mm |
| F-number | F4.0 to F11 |
| Image size | Ø30 mm |
| Optical distortion | 0.1% |
| Magnification range | 0.3x to 0.05x |
| Working distance range | 103 mm to 595 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35 × 0.5 |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Dimension | Ø48.1 mm × 54.6 to 62.6 mm (Ø1.9" × 2.2" to 2.5") |
| Weight | 162 g (0.4 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Shipping weight (estimated) | 0.33 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
