Machine vision lenses

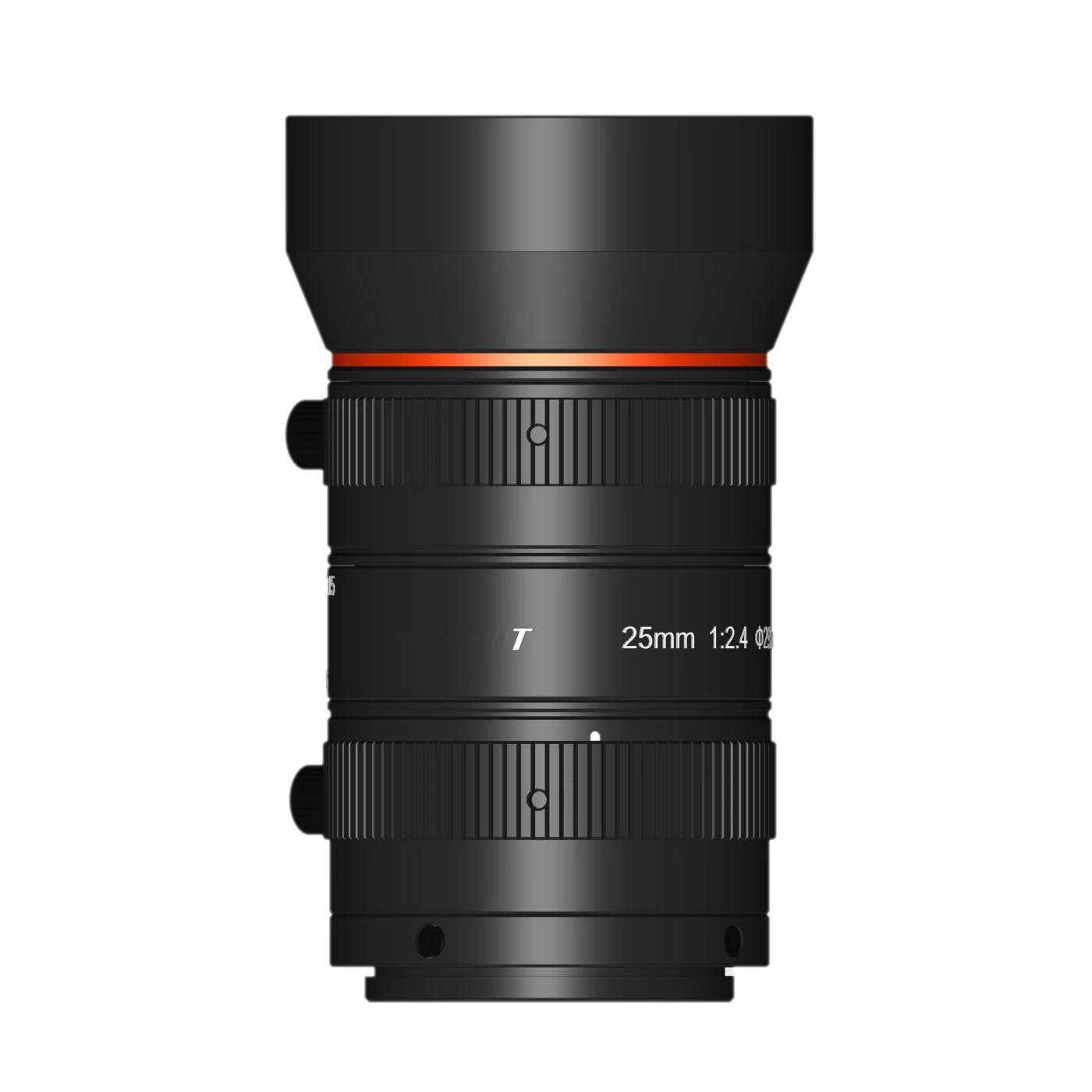

25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount (LS-AF2524M-M42)
Model LS-AF2524M-M42
25mm, F2.4, Image Size φ29mm, Recommended Magnification 0.04~0.18X, M42-Mount. Adopts high-precision lens for 4k 7 μm line scan cameras. Provides excellent consistency of image clarity, large aperture, and low distortion.
Features
- Adopts high-precision lens for 4k 7 μm line scan cameras.
- Provides excellent consistency of image clarity, large aperture, and low distortion.
- Provides ultra-high resolution at the max. aperture of F2.4.
- Provides max. image size Φ29 mm.
Specifications
| Model | LS-AF2524M-M42 |
|---|---|
| Focal length | 25 mm |
| F-number | F2.4 to F16 |
| Image size | Φ29 mm |
| Optical distortion | –0.34% |
| Magnification range | 0.143 x to 0.001 x |
| Working distance range | 150 mm to inf mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M58 × P0.75 |
| Mount | M42 × P1 |
| Flange back length | 12 mm |
| Dimension | Φ60 mm × 96.68 mm (Φ2.4" × 3.8") |
| Weight | 501 g (1.1 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.80 kg |
Complete the station
Drive the light from a light controller and pair it with a lens for your field of view and working distance.
Light controllers LensesSelection guideOther sizes in the AF series lenses series
| Model | Size | Price | Availability | |
|---|---|---|---|---|
| LS-AF1828M-M42B | $639.00 | 4 in stock | View | |
| LS-AF2045M-M42 | $639.00 | 3 in stock | View | |
| LS-AF2840M-M42 | $639.00 | 3 in stock | View | |
| LS-AF3528M-M42 | $639.00 | 2 in stock | View | |
| LS-AF3528M-M42A | $639.00 | 4 in stock | View | |
| LS-AF4028M-M42 | $639.00 | 3 in stock | View | |
| LS-AF5028M-M42A | $639.00 | 3 in stock | View | |
| LS-AF5040M-M42 | $639.00 | 2 in stock | View |
