Cables

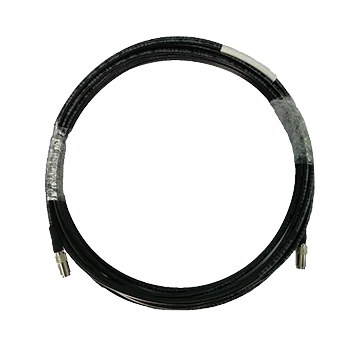

Camera Data Cable, DIN 1.0/2.3 to DIN 1.0/2.3, 5 m (LS-ACXP6-DIN-DIN-ST-5M)
Model LS-ACXP6-DIN-DIN-ST-5M
Camera Data Cable, DIN 1.0/2.3 to DIN 1.0/2.3, 5 m. CXP-6 standard data cable for data transmission from CoaXPress cameras, available in multiple lengths.
Features
- CXP-6 standard data cable for data transmission from CoaXPress cameras, available in multiple lengths.
Specifications
| Model | LS-ACXP6-DIN-DIN-ST-5M |
|---|---|
| End A connector | DIN 1.0/2.3 |
| End B connector | DIN 1.0/2.3 |
| Cable diameter | 4 mm |
| Length | 5 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 300 VDC |
| Working temperature | -30°C-75°C |
| Certification | UL, CMR |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
Complete the station
The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
Configure a system Selection guide
