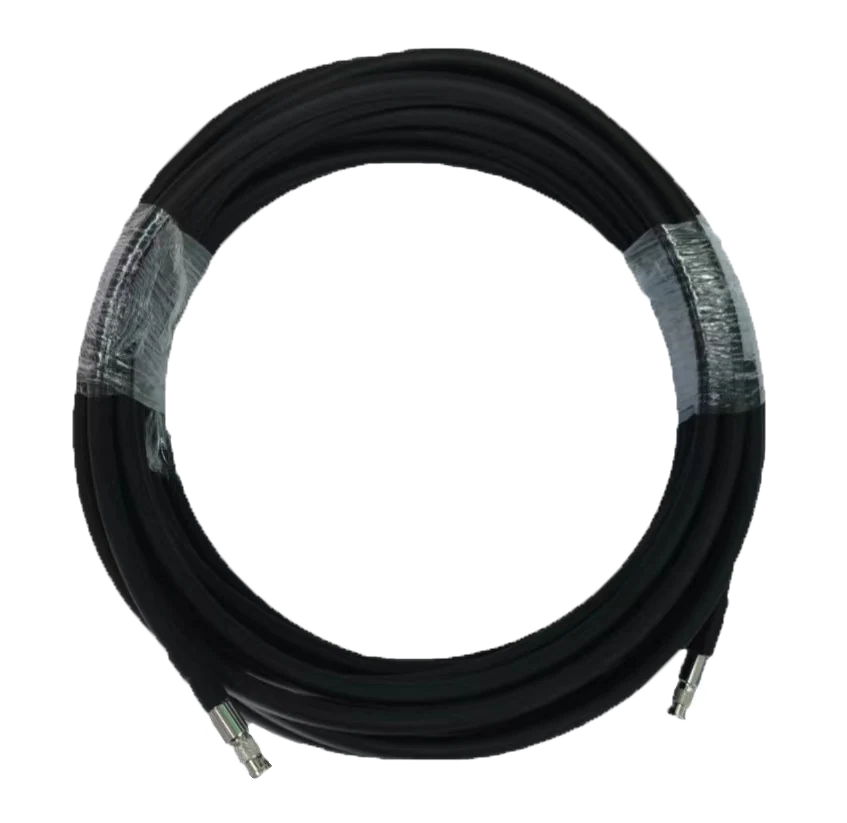

Camera Data Cable, HD-BNC to HD-BNC, 4 m (LS-ACXP12-HDBNC-HDBNC-HF-4M)

Cables

Camera Data Cable, HD-BNC to HD-BNC, 4 m (LS-ACXP12-HDBNC-HDBNC-HF-4M)

Model LS-ACXP12-HDBNC-HDBNC-HF-4M

Camera Data Cable, HD-BNC to HD-BNC, 4 m. CXP-12 high-flex cable for data transmission with CoaXPress cameras; available in multiple lengths

$209.00 USDIn stock · 3 available

Inventory updated Oct 16, 2026

0.31 kg shipping weight · Ships in 2-3 weeks

Need volume or project pricing?

Build a system with this part → Matching lens, light, controller and cables, checked for fit

  • Secure checkout by ShopifyCard, PayPal, Venmo, Shop Pay or Google Pay
  • 90-day returnsUnused items; free return label in the US · Returns policy
  • Tracked UPS or DHL shippingExact cost shown at checkout · Shipping policy
  • Questions about fit?Contact us; we reply within one business day
Datasheet (PDF) - LS-ACXP12-HDBNC-HDBNC-HF-4M

Features

  • CXP-12 high-flex cable for data transmission with CoaXPress cameras; available in multiple lengths

Specifications

ModelLS-ACXP12-HDBNC-HDBNC-HF-4M
End A connectorHD-BNC
End B connectorHD-BNC
Cable diameter5.0mm
Length4 m
Cable mechanicalCoaxial
JacketPVC
Cable colorBlack
Connector durability500 cycles
Min. bending radius60mm
Applicable scenarioDrag chain
Max. U-type bending cycles2 million times
Max. voltage300 VDC
Working temperature-30°C-80°C
CertificationRoHS, UL
PackagingIndividual package
Shipping weight (estimated)0.31 kg
