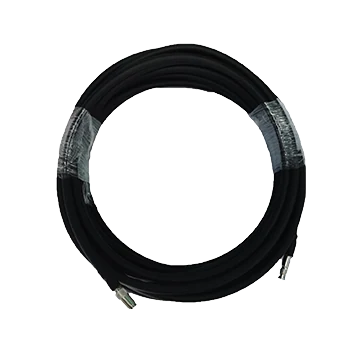

Camera Data Cable, DIN 1.0/2.3 to HD-BNC, 5 m (LS-ACXP6-DIN-HDBNC-HF-5M)
Model LS-ACXP6-DIN-HDBNC-HF-5M
Camera Data Cable, DIN 1.0/2.3 to HD-BNC, 5 m. The CXP-6 High Flex Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
Features
- The CXP-6 High Flex Data Cable can be used for data transmission of CoaxPress interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACXP6-DIN-HDBNC-HF-5M |
|---|---|
| End A connector | DIN 1.0/2.3 |
| End B connector | HD-BNC |
| Cable diameter | 5 mm |
| Length | 5 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Tank chain |
| Max. U-type bending cycles | 2 million times |
| Max. voltage | 300 VDC |
| Working temperature | -30°C-80°C |
| Certification | RoHS、UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
