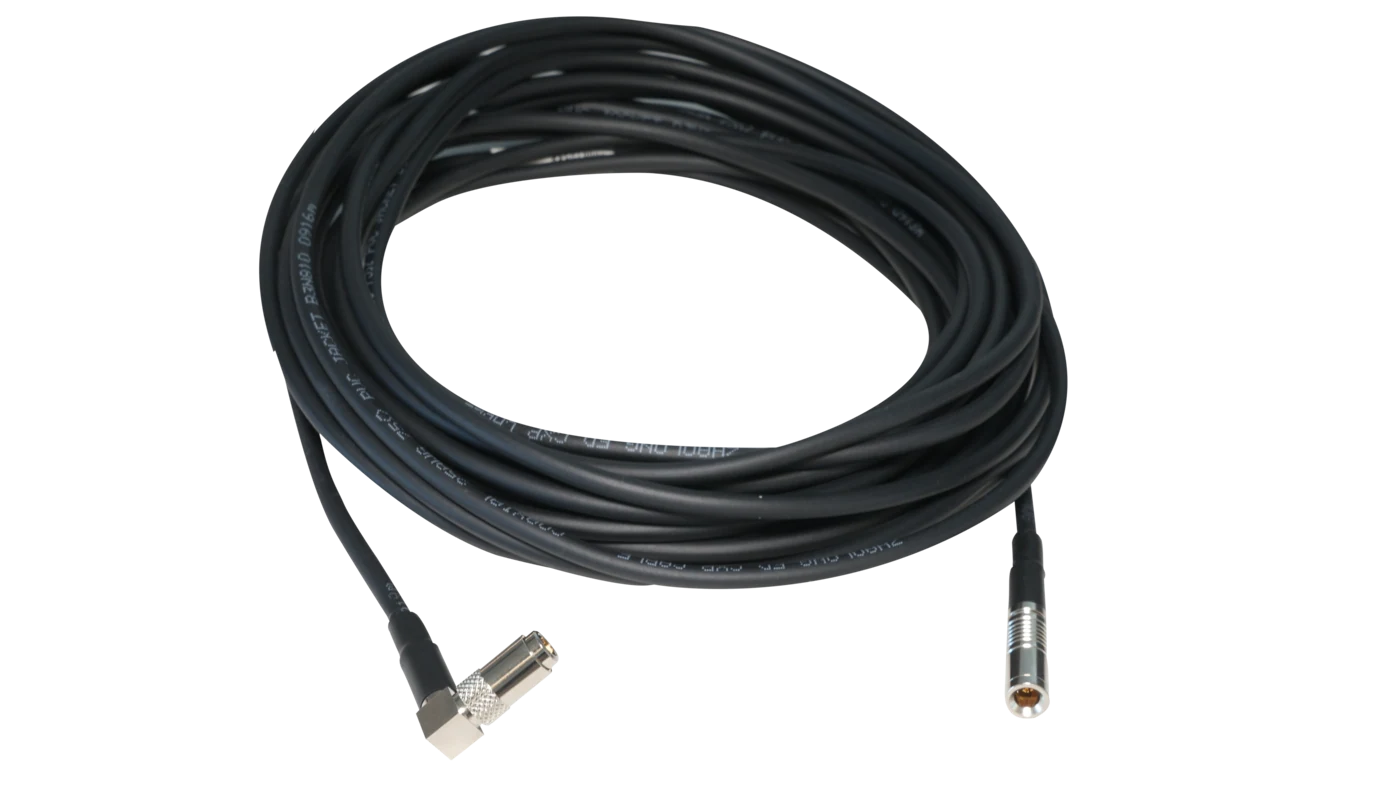

Camera Data Cable, DIN 1.0/2.3 to DIN 1.0/2.3 (angled), 3 m (LS-ACXP6-DIN-UP-DIN-HF-3M)
Model LS-ACXP6-DIN-UP-DIN-HF-3M
Camera Data Cable, DIN 1.0/2.3 to DIN 1.0/2.3 (angled), 3 m. The CXP-6 high-flex angled data cable can be used for data transmission of cameras with CoaXPress interface, and is available in a variety of lengths.
Features
- The CXP-6 high-flex angled data cable can be used for data transmission of cameras with CoaXPress interface, and is available in a variety of lengths.
Specifications
| Model | LS-ACXP6-DIN-UP-DIN-HF-3M |
|---|---|
| Cable diameter | 5.0 mm |
| Length | 3 m |
| End A connector | DIN 1.0/2.3 |
| End B connector | DIN 1.0/2.3 (angled) |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | 500 mating cycles |
| Min. bending radius | 60 mm |
| Applicable scenario | Drag chains |
| Max. U-type bending cycles | 2 million |
| Max. voltage | 300 VDC |
| Working temperature | –30 °C to 80 °C (–22 °F to 176 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
