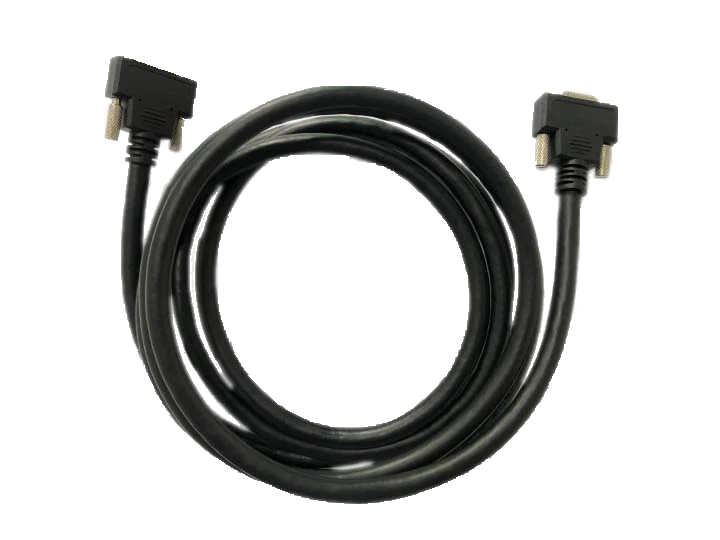

Camera Data Cable, MDR26 to MDR26, 3 m (LS-ACCL-MDR-MDR-HF-3M)
Model LS-ACCL-MDR-MDR-HF-3M
Camera Data Cable, MDR26 to MDR26, 3 m. The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Features
- The Camera Link Flex Data Cable can be used for data transmission of Camera Link interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACCL-MDR-MDR-HF-3M |
|---|---|
| End A connector | MDR26 |
| End B connector | MDR26 |
| Cable diameter | 9.5 mm |
| Length | 3 m |
| Cable mechanical | UL20276 |
| Jacket | PVC |
| Cable color | Black |
| Connector model | made in China |
| Connector durability | ≥500 cycles |
| Min. bending radius | 114 mm |
| Applicable scenario | Drag chain |
| Max. U-type bending cycles | 5 million times |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~80°C |
| Certification | UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
