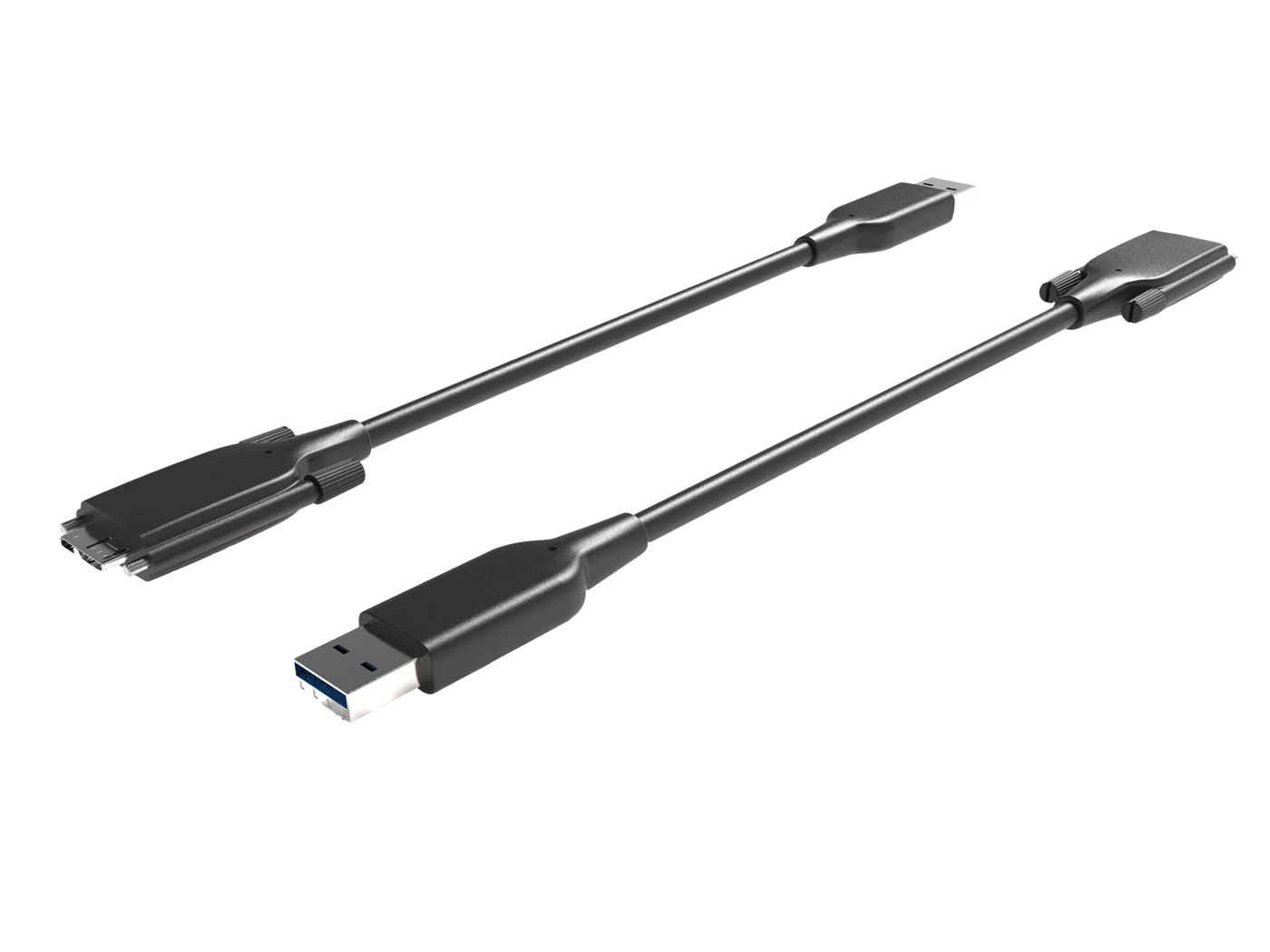

Camera Data Cable, Micro-B male (with screw) to A male, 15 m (LS-ACU3-MBMS-AM-SF-15M)
Model LS-ACU3-MBMS-AM-SF-15M
Camera Data Cable, Micro-B male (with screw) to A male, 15 m. The USB3.0 Super Flex Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
Features
- The USB3.0 Super Flex Data Cable can be used for data transmission and power supply of USB3.0 interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACU3-MBMS-AM-SF-15M |
|---|---|
| End A connector | Micro-B male (with screw) |
| End B connector | A male |
| Cable diameter | 4.8 mm |
| Length | 15 m |
| Cable mechanical | (1P*26#+ADBMP)2C+1P*26#+1P*24#+FPB |
| Jacket | Nitrile PVC |
| Cable color | Black |
| Connector durability | 5, 000 cycles |
| Min. bending radius | 57.6 mm |
| Applicable scenario | Static scenes/tank chain |
| Max. U-type bending cycles | 10 million times |
| Max. ±90° bending cycles | 5 million times |
| Max. voltage | 5 VDC |
| Working temperature | -20°C~ 80°C |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
