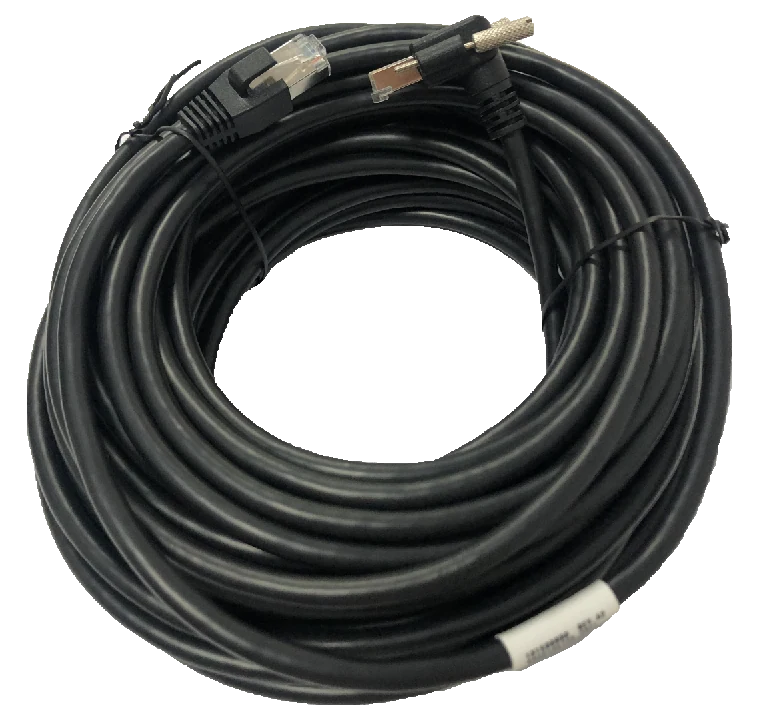

Camera Data Cable, RJ45 (with locking stud), Bend(up) to RJ45, 15 m (LS-ACG-RJ45S-UP-RJ45-ST-15M)
Model LS-ACG-RJ45S-UP-RJ45-ST-15M
Camera Data Cable, RJ45 (with locking stud), Bend(up) to RJ45, 15 m. The RJ45 Standard (Bend) Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
Features
- The RJ45 Standard (Bend) Gigabit Ethernet Cable can be used for data transmission of RJ45 Gigabit Ethernet interface cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACG-RJ45S-UP-RJ45-ST-15M |
|---|---|
| End A connector | RJ45 (with locking stud), Bend(up) |
| End B connector | RJ45 |
| Cable diameter | 6.2 mm |
| Length | 15 m |
| Cable mechanical | 4P*26#+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | ≥750 cycles |
| Min. bending radius | 74.4 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 30 VDC |
| Working temperature | -20°C~ 75°C |
| Certification | RoHS2.0, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
