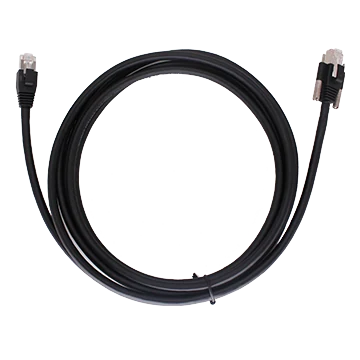

Camera Data Cable, RJ45 (with locking stud) to RJ45, 10 m (LS-AC10G-RJ45S-RJ45-HF-10M)
Model LS-AC10G-RJ45S-RJ45-HF-10M
Camera Data Cable, RJ45 (with locking stud) to RJ45, 10 m. RJ45 high-flex 10 GigE cable can be used for data transmission of 10 GigE interface cameras, and it is available in various lengths.
Features
- RJ45 high-flex 10 GigE cable can be used for data transmission of 10 GigE interface cameras, and it is available in various lengths.
Specifications
| Model | LS-AC10G-RJ45S-RJ45-HF-10M |
|---|---|
| End A connector | RJ45 (with locking stud) |
| End B connector | RJ45 |
| Cable diameter | 7.0 mm |
| Length | 10 m |
| Cable mechanical | (26#*1P+AL)*4C+AB |
| Jacket | PVC |
| Cable color | Black |
| Connector durability | >750 cycles |
| Min. bending radius | 84 mm |
| Applicable scenario | Drag chains |
| Max. U-type bending cycles | 5 million |
| Max. voltage | 30 VDC |
| Working temperature | –20 °C to 75 °C (–4 °F to 167 °F) |
| Certification | RoHS, UL |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
