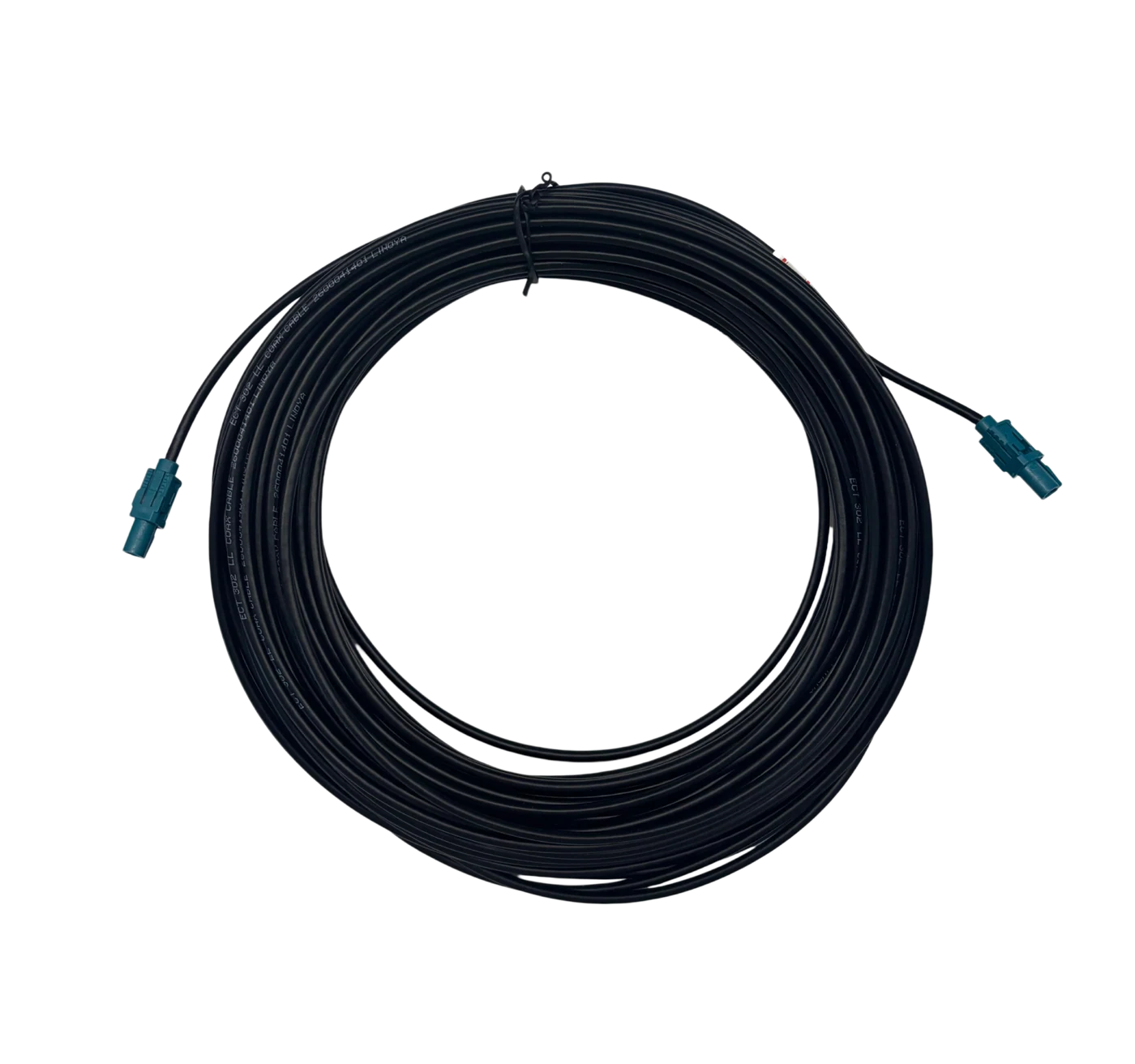

Camera Data Cable, Mini-FAKRA, Z-code to Mini-FAKRA, Z-code, 15 m (LS-ACC-MFM-MFM-ST-15M)
Model LS-ACC-MFM-MFM-ST-15M
Camera Data Cable, Mini-FAKRA, Z-code to Mini-FAKRA, Z-code, 15 m. The Mini-FAKRA Standard Coaxial Data Cable can be used for data transmission of XoCLink Area Scan Cameras, and is available in a variety of lengths.
Features
- The Mini-FAKRA Standard Coaxial Data Cable can be used for data transmission of XoCLink Area Scan Cameras, and is available in a variety of lengths.
Specifications
| Model | LS-ACC-MFM-MFM-ST-15M |
|---|---|
| End A connector | Mini-FAKRA, Z-code |
| End B connector | Mini-FAKRA, Z-code |
| Cable diameter | 3.3 ± 0.2 mm |
| Length | 15 m |
| Cable mechanical | Coaxial |
| Jacket | PVC |
| Cable color | Black |
| Min. bending radius | 39.6 mm |
| Applicable scenario | Static scenes |
| Max. voltage | 60 VDC |
| Working temperature | –20 °C to 80 °C (–4 °F to 176 °F) |
| Certification | RoHS |
| Packaging | Individual package |
| Shipping weight (estimated) | 0.31 kg |
